Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical

Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical
Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical

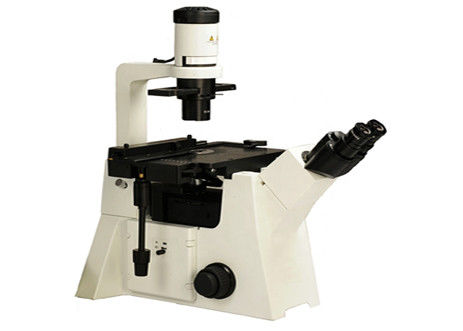

Large Image :  Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17102
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 40~1000X Eyepiece: WF10X/20mm
Objective: 4X, 10X, 40X, 100X Focusing: Coarse And Fine Adjustment Focusing
Nosepiece: Quadruple Nosepiece Light Source: 6V30W Halogen Lamp
High Light:

Inverted phase contrast electron microscopy

,

Trinocular phase contrast electron microscopy

,

1000X laboratory optical microscope



40X-1000X Trinocular Inverted Phase Contrast Microscope



M17102 40X-1000X Trinocular Inverted Phase Contrast Microscope. Phase-contrast microscope is an optical-microscope technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations.



Features:



- With camera it can connect to computer or screen, taking photo and recording video as well.

- Competent for scientific research, medicine, industry, agriculture and education.

- Uniform illumination with consistent color temperature.

- Excellent contrast via simple aperture iris operation.

- Enables users to remain comfortable during long periods of routine microscopy observations.



Item Description / Value
Optical system: UCIS Infinity independent achromatic optical system
Head: Seidentopf trinocular head 45° inclined, interpupillary distance 52-75mm
Eyepiece: WF10X/20mm, high eye-point up to 21mm, ±5 Diopter adjustment
Objective:

Infinity Achromatic objective 4X;

Infinity Achromatic phase-contrast objective 10X;

Infinity Achromatic phase-contrast objective 40X;

Infinity Achromatic phase-contrast objective 100X;

Nosepiece: Four-hole converter
Magnification: 40X~l000X
Focusing mechanism: Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
Light source: 6V30W halogen illumination
Condensor: N.A. 0.30 Abbe condenser with iris diaphragm, with phase-contrast slide, long work distance 72mm
Stage: Right hand controls, brightness adjustable, low position, mechanical stage, 240mm x 260mm, movement range 135mm x 85mm
Adapter: 0.5x C-mount
