40X 1000X Trinocular Phase Contrast Microscope Bright Field Light WF10X/20mm

40X 1000X Trinocular Phase Contrast Microscope Bright Field Light WF10X/20mm
40X 1000X Trinocular Phase Contrast Microscope Bright Field Light WF10X/20mm

Large Image :  40X 1000X Trinocular Phase Contrast Microscope Bright Field Light WF10X/20mm

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

40X 1000X Trinocular Phase Contrast Microscope Bright Field Light WF10X/20mm

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40~1000X
Eyepiece: WF10X/20mm Objective: 4X, 10X, 40X, 100X
Focusing: Coarse And Fine Adjustment Focusing Nosepiece: Quadruple Nosepiece
High Light:

1000X Trinocular Phase Contrast Microscope

,

40X Trinocular Phase Contrast Microscope

,

WF10X/20mm bright field light microscope



40X-1000X Binocular Phase Contrast Microscope

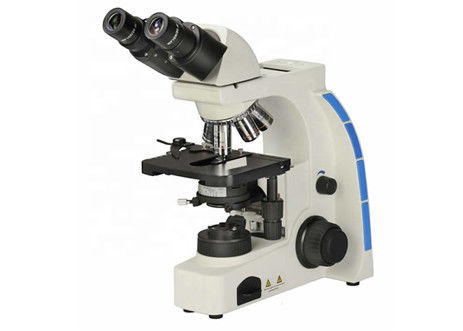

M17103 40X-1000X Binocular Phase Contrast Microscope. M17103 is designed as phase-contrast microscope, which is an optical-microscope technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations.



Features:



- Uniform illumination with consistent color temperature.

- Enables users to remain comfortable during long periods of routine microscopy observations.

- Competent for scientific research, medicine, industry, agriculture and education.



Item Description / Value
Optical system: UCIS Infinity independent achromatic optical system
Head: Seidentopf binocular head 30° inclined, 360 ° rotatable interpupillary distance 52-75mm
Eyepiece: WF10X/20mm
Objective:

Infinity Achromatic objective 4X;

Infinity Achromatic phase-contrast objective 10X;

Infinity Achromatic phase-contrast objective 40X;

Infinity Achromatic phase-contrast objective 100X;

Nosepiece: Four-hole converter
Magnification: 40X~l000X
Focusing mechanism: Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
Light source:

6V20W halogen illumination, brightness adjustable;

6V30W halogen illumination, brightness adjustable;

3W LED, brightness adjustable

Condensor: N.A. 1.25 Phase contrast condenser, center adjustable
Stage: Mechanical stage with double layers, 156mmx138mm, movement range 76mmx 52mm
