50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation

Description
Color: White Drawtube: Binocular
Theory: Metallurgical Microscope Application: Machinery, Electronics, Plastics Etc.
Eyepiece: WF10X/20mm Magnification: 50X-1000X
Objective: 5X, 10X, 20X, 50X Nosepiece: 4 Holes Nosepiece
Focusing: Coaxial Coarse And Fine Adjustment Illumination: 12V/50W Halogen
High Light:

Dark Field Inverted Metallurgical Microscope

,

1000X Inverted Metallurgical Microscope

,

50X dark field microscope



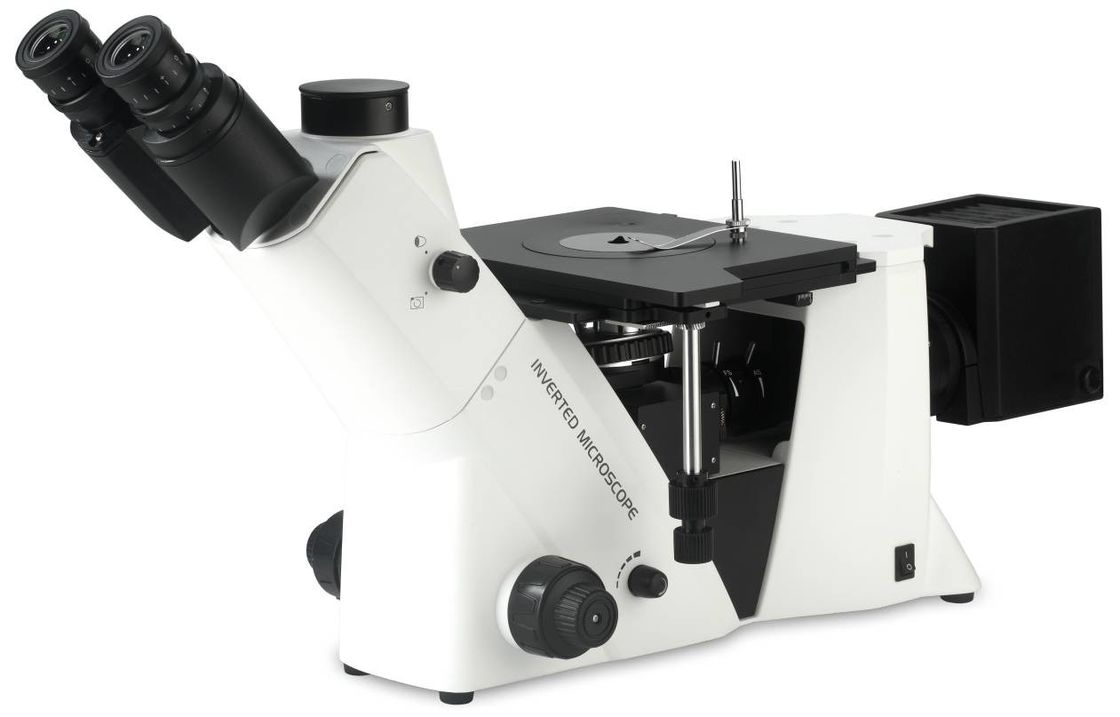

New R&D 50X-1000X Inverted Metallurgical Microscope Combinated With Bright field, Dark Field And Polarizing Observation



M13116 New R&D 50X-1000X Inverted Metallurgical Microscope Combinated With Bright field, Dark Field And Polarizing Observation. Combinated with bright field, dark field and polarizing observation, this series inverted microscope are widely used in metal, mineral, electronic industry.



Features:

  • New research and new development.
  • Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.
  • Oversize view field eyepiece, view field up to 22mm for comfortable observation.
  • Oversized three-layer working stage, more choice for samples.
  • Light distribution (both): 100 : 0 (100% for eyepiece), 80 : 20 (80% for trinocular head and 20% for eyepiece).



Item Specification M13116A M13116B
Eyepiece WF10×/22mm(adjustable)
WF10×/22mm(adjustable,reticule 0.1mm)

Metallurgical LWD Infinity

Plan Objectives

LMPlan FL 5×/0.15

(Semi Apochromatic Objective)

W.D.=21.00mm

LMPlan FL 10× /0.30

(Semi Apochromatic Objective)

W.D.= 20.00mm

LMPlan FL 20× /0.40

(Semi Apochromatic Objective)

W.D.= 15.00mm

LMPlan FL 50× /0.55

(Semi Apochromatic Objective)

W.D.= 10.00mm
LPL 80×/0.80 W.D.= 0.85mm

LMPlan FL 100×0.85 (Dry)

(Semi Apochromatic Objective)

W.D.= 3.00mm

Metallurgical LWD Infinity

Plan Objectives for Bright & Dark Field

M PLAN 5×/0.13 BD W.D=7.30mm
M PLAN 10×/0.25 BD W.D.= 11.5mm
M PLAN 20×/0.40 BD W.D.= 5.60mm
M PLAN 50×/0.70 BD W.D.= 1.60mm
Seidentopf Trinocular Head

Inclined 30°, interpupilary distance: 48-76mm

Light distribution (both):100: 0(100% for eyepiece)

80:20(80% for trinocular head, and 20% for eyepiece)

Nosepiece Quintuple
Quadplex(specially for bright /dark field objectives)
Mechanical Stage Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm
Coaxial Coarse and Fine Focusing unit

Coarse stroke: 10mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm.

Polarizing Unit Polarizer /Analyzer
Illumination 12V/50W Halogen(Input voltage:100V~240V)
5WLED lamp (Input voltage:100V~240V)
Filter Blue
Green/ Amber/ Grey
C-mount 1×/0.75×/0.5×C-Mount (focus adjustable)
Adaptor for Digital Photograph Use for CANON/NIKON/OLYMPUS etc.

Note: ● means standard, ○ means optional



New research and new development.

Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.



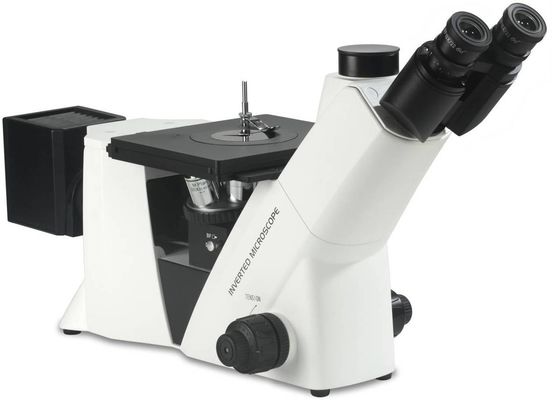

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 0

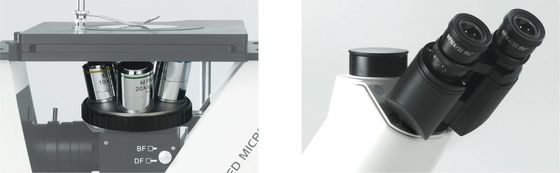

Dark field objective,Make observation in dark & bright field.

Oversize view field eyepiece, view field up to 22mm for comfortable observation.

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 1

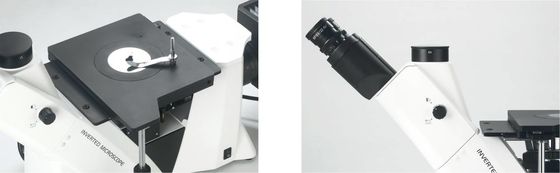

Oversized three-layer working stage, more choice for samples.

Light distribution (both): 100 : 0 (100% for eyepiece) , 80 : 20 (80% for trinocular head and 20% for eyepiece)

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 2



Analyzer & Polarizer for simple polarizing observation.

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 3



Objective specification: ( "●" Means Standard, "○" Means Optional)

  Objective N.A.

Working Distance

(mm)

MDS400 MDS400D

Metallurgical LWD Infinity

Plan Objectives

LMPlan FL 5×

(Semi Apochromatic Objective)

0.15 21.00

LMPlan FL 10×

(Semi Apochromatic Objective)

0.30 20.00

LMPlan FL 20×

(Semi ApochromaticObjective)

0.40 15.00

LMPlan FL 50×

(Semi Apochromatic Objective)

0.55 10.00
LPL 80× 0.80 0.85

LMPlan 100×(Dry)

(Semi Apochromatic Objective)

0.85 3.00

Metallurgical LWD Infinity

Plan Objectives for Bright/Dark Field

M PLAN 5× BD 0.13 7.30
M PLAN 10× BD 0.25 11.50
M PLAN 20× BD 0.40 5.60
M PLAN 50× BD 0.70 1.60



Metallurgical LWD Infinity Plan Objectives

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 4



Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 5



M13116 Inverted Metallurgical Microscope General Layout Diagram

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 6

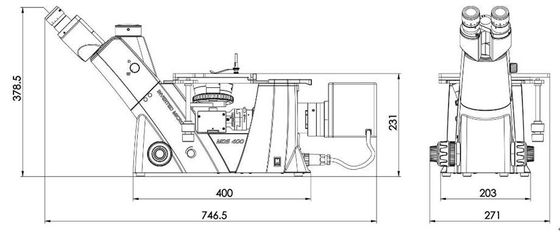

M13116 Inverted Metallurgical Microscope Size (mm)

50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 7



Packing Size: 660mm×590mm×325mm

Gross Weight: 17kgs

Net Weight: 12.5kgs



50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation 8
