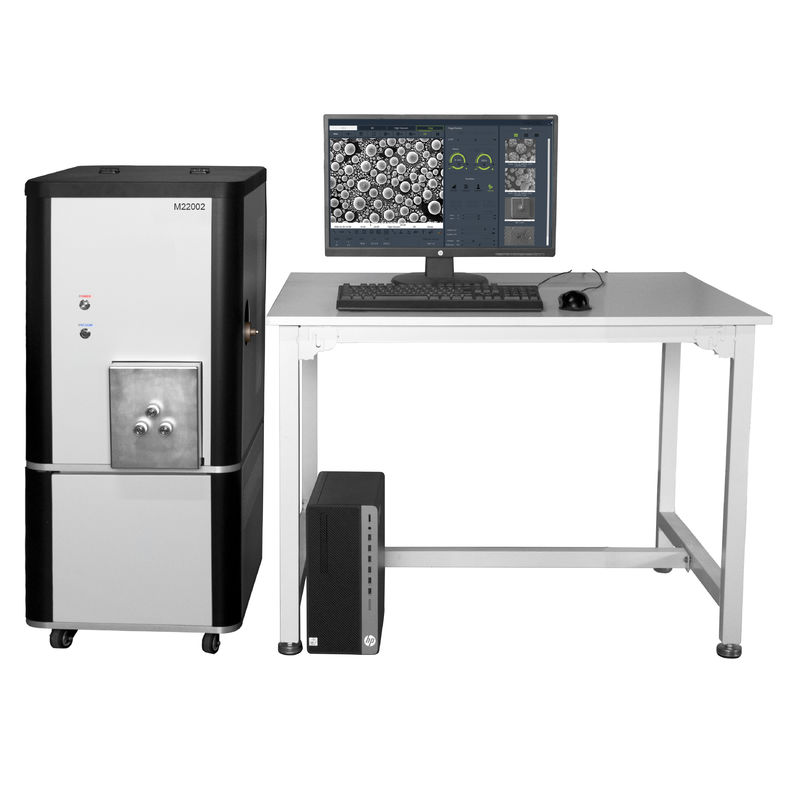

Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Lead-time: 40 Work Days Supply Ability: 10 PCS/Month
Resolution: 5nm Magnification: 150,000X
Accelerating Voltage: 1kV To 30kV Signal Detection: (SEI)-Secondary Electron Image
Electron Gun: Filament Type, Pre Centered Tungsten Filament Cartridge Max Sample Size: 80mm In Diameter, 35mm In Height
Image Format: BMP, JPEG, PNG,TIFF Vacuum System: High Vacuum Mode
High Light:

Max 150000X Scanning Electron Microscope

,

5nm Resolution BSE Scanning Electron Microscope

,

5nm backscattered electron microscope



Magnification Max 150,000X Scanning Electron Microscope 5nm Resolution with Optional EDS and BSE



The maximum magnification of the M22002 series SEM is 150,000 times, and the resolution is up to 5nm (SE, 30kV). It is equipped with SE (secondary electron) detector and BSE (backscattered electron) detector. The load platform can be configured with three axes (X, Y, R). The manual platform can also be upgraded to a five-axis (X, Y, R, Z, T) automatic platform. The EDS spectrum analyzer can be configured in all series of products.



Specials:

  • Magnification Max 150,000X.
  • Image depth of field high, 3D sense strong, high resolution.
  • 5-axis System, X, Y-axis: 35mm / R-axis : 360°, Z: 0~22mm / Tilt-axis: 0~45°
  • 4 step variable sleeve aperture, High-resolution images can be provided by adjusting the beam size.
  • Automatic focus and adjust the contrast and brightness, adjust the electron beam size, eliminate astigmatism.
  • Large sample chamber, to observe a wide variety of sample, optional EDS, BSE, motor control stage and other accessories.



Item Specification M22002
Resolution 5nm (30kV, SE Image)
Magnification 30x~150,000x
Accelerating Voltage 1kV to 30kV (1kV/5kV/10kV/15kV/20kV/30kV)

Signal Detection



(SEI)-Secondary Electron Image
(BSEI)-Backscattered Electron Image
Observation mode Standard Mode
Electron Gun Filament type, Pre Centered tungsten filament Cartridge
Bias voltage system, Automatic mode
Electron gun alignment, Manual mode
Lens system Focus Lens, 2-stage Electromagnetic Condenser Lens
Objective Lens, 1-stage Electromagnetic Objective Lens
Detector type, SE Detector/ BSE Detector
Stage Traverse 5-axis System, X, Y-axis: 40mm / R-axis: 360°, Z: 0~35mm / Tilt-axis: 0~45°
Image shift Image shift X, Y Image Shift (±150um)
Max Sample size 80mm in diameter, 35mm in height
Image Scanning system Fast Scan: 320x240
Slow Scan: 640x480
Photo Mode 1: 1280x960
Photo Mode 2: 2560x1920
Photo Mode 3: 5120x3840
Image format BMP, JPEG, PNG,TIFF
Data display Magnification,Detector type,Accelerating Voltage,Vacuum mode,Logo(Text),Date and time,Text marker,scale bar
Vacuum system

High Vacuum Mode

Rotary Pump/100Liters/min
Turbo Molecular Pump/ 70Liters/sec
pump down time:less than 3minutes

Control unit system

Mouse, Keyboard

PC: Desk Top
OS: Microsoft Window 7
CPU: Intel CoreTM i5 or High version
Memory / HDD: 8GB / 1TB or High version

USB 2.0

Software function Image file open, edit, Save function
Length, area, angle measuring
parameter initialization,Image capture mode conversion,Archives, Setting(EDS Optional)
Volume

Main Unit -460(W)×600(D)×950(H)mm……1set

External vacuum pump)-400(W)×160(D)×340(H)mm …1set

Weight 105kg
Equipment environment

Temperature: 15℃~30℃

Humidity: 70% or less

Power source: Single phase 220V AC, 1KW, 50/60Hz



Accessories package:


Pre Centered tungsten filament 5 pcs/box

Sample Stage





15mm dia. (10 pcs)
25mm dia. (10 pcs)
15mm 45° Tilt (5 pcs)
15mm 90° Tilt (5pcs)
Height standard master 1ea
allen wrench 1set
SEM Software CD 1ea
Carbon conductive tape 1roll
scissors 1ea
tweezers 1ea
Tools Box 1ea

Note: ● means standard, ○ means optional



Part of images:



New energy materials

Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 0

Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 1

Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 2



Industrial materials

Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 3



                                                                               Tin ball



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 4



                                                                                 Acrylic



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 5



                                                                        Medical filter



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 6

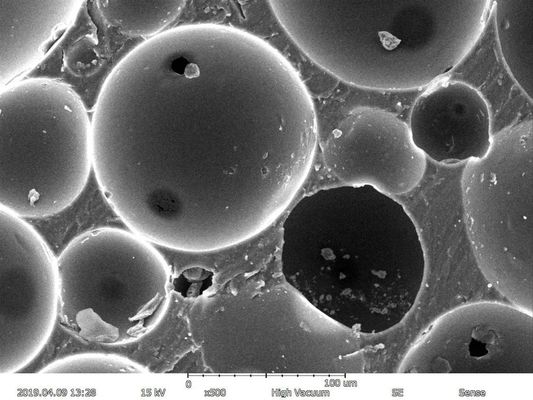

                                                                     Foaming material



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 7



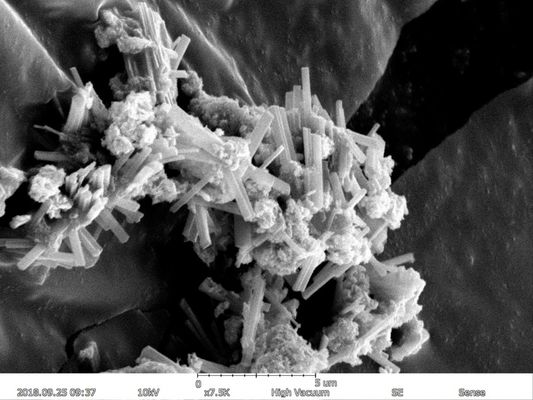

                                                                         Si3N4 material



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 8



                                                                           Carbon



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 9

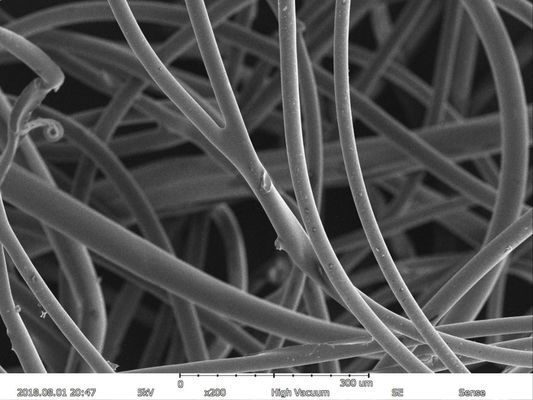

                                                                        Carbon fiber



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 10



                                                                                  Fiber



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 11



                                                             Nano-permeable membrane


Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 12



                                                                  Super zinc activator



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 13

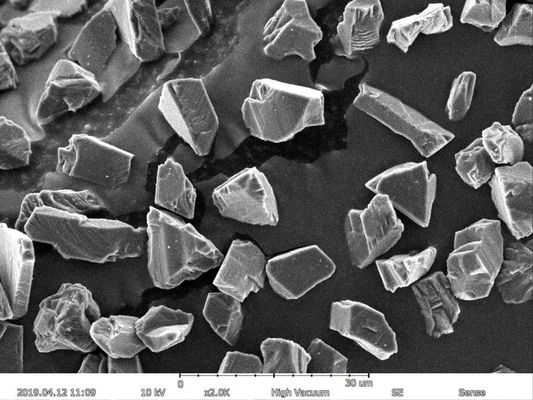

                                                                       Diamond powder



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 14



                                                                   Diamond powder 2



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 15



                                                            Neodymium iron boron magnet



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 16



                                                                     Ferromagnet



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 17



                                                                 Y phase in steel materials



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 18



                                                                       Diamond cutter



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 19



                                                                      Silicon ball



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 20



                                                                         Gold particles



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 21



                                                                             Iron powder



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 22



                                                                      Security material



Magnification Max 150000X Scanning Electron Microscope 5nm Resolution EDS BSE 23

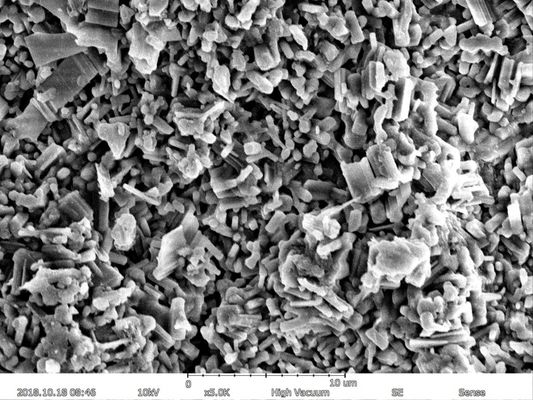

                                                                             Ceramic
