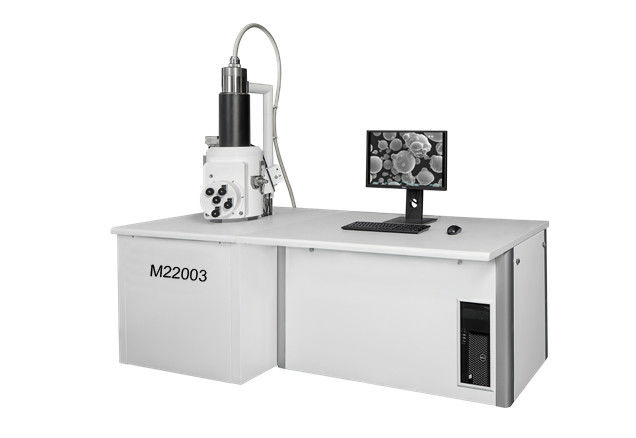

8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD

8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD
8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD

Large Image :  8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M22003
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Wooden Box
Delivery Time: 40 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 PCS/Month

8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Lead-time: 40 Work Days Supply Ability: 10 PCS/Month
Resolution: 3nm, 6nm Magnification: 300,000X
Accelerating Voltage: 0~30kV Signal Detection: CCD High Vacuum Secondary Electron Detector
Electron Gun: Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge/LaB6(Option) Max Sample Size: 175mm In Diameter, 35mm In Height
Auto Function: Gun Heating,Bias,Centering,Focus,Bright,Contrast,Stigmator, Autocorrection,Fault Detection Vacuum System: 1TMP, 1RP
High Light:

8X-300 000X Scanning Electron Microscope

,

3-6nm Resolution Scanning Electron Microscope

,

c scanning transmission electron microscope



Magnification 8X-300,000X Scanning Electron Microscope 3-6nm Resolution with Optional EBSD EBSD



M22003 electron microscope operating software can be switched in Chinese/English with modular layout. In addition to the basic operation function of electron microscope, it also has one-click image viewing. This series software supports simultaneous display of three real-time images, two channels with CCD window, and powerful auxiliary functions such as synthesis of secondary electron image and backscattered image, multi-point size measurement, text annotation of electron microscope pictures, vacuum map display, CCD window display, etc., to meet the individual needs of different users.



Automatic functions: focusing, brightness/contrast adjustment, astigmatism, electron beam centering, automatic correction of electron gun, fault detection, one-button viewing, optional 3D reconstruction, etc.

Saved pictures: 4096x4096pixel BMP, GIF, TIF, JPG, MNG, ICO SEM.



Specials:



- Magnification Max 300,000X.

- Signal Detection: CCD High Vacuum Secondary Electron Detector( With detector perotection function) , Semiconductor Four Segemation Back Scattering Electron Detector, CCD Montioring Camera.

- Accelerating Voltage: 0~30KV, High image resolution.

- EDS/EBSD/CL is optional, for component analysis.

- High Vacuum System.

- Four Axes Motorized Stage.



Item Specification M22003A M22003B
Resolution 3nm@30kV(SE)
  6nm@30kV(BSE)
Magnification 8X~300,000X, Displayed Magnification:Magnification is defined with a display size 127mm*211mm
Accelerating Voltage 0~30kV

Signal Detection



CCD High Vacuum Secondary Electron Detector( With detector perotection function)

Semiconductor Four Segemation Back Scattering Electron Detector

CCD Montioring Camera

Electron Gun Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge/LaB6(Option)
Auto Function Gun Heating,Bias,Centering,Focus,Bright,Contrast,Stigmator, Autocorrection,Fault Detection
StageSystem/Movement Four Axes Motorized Stage
X: 0~70mm, Auto
Y: 0~50mm, Auto
Z: 0~45mm, Auto
R: 360°, Auto
T: -5°~90°, Manual
Max Sample Diameter 175mm
Max Sample Height 35mm
Vacuum system 1 TMP,1RP (Turbomolecular pump, mechanical pump)
  Low vacuum atmosphere (10-270Pa)
Optional Detector EDSEBSDCL
Optional Accessories EBLCryo&Heating StageNano ManipulatorTensile Stage

Note: ● means standard, ○ means optional

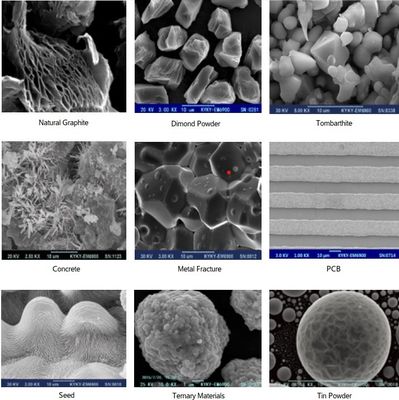

Gallery



8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 0

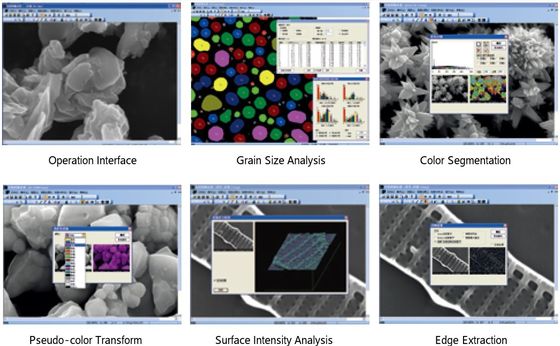

Image Processing Software



8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 1



8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 2



8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD 3
