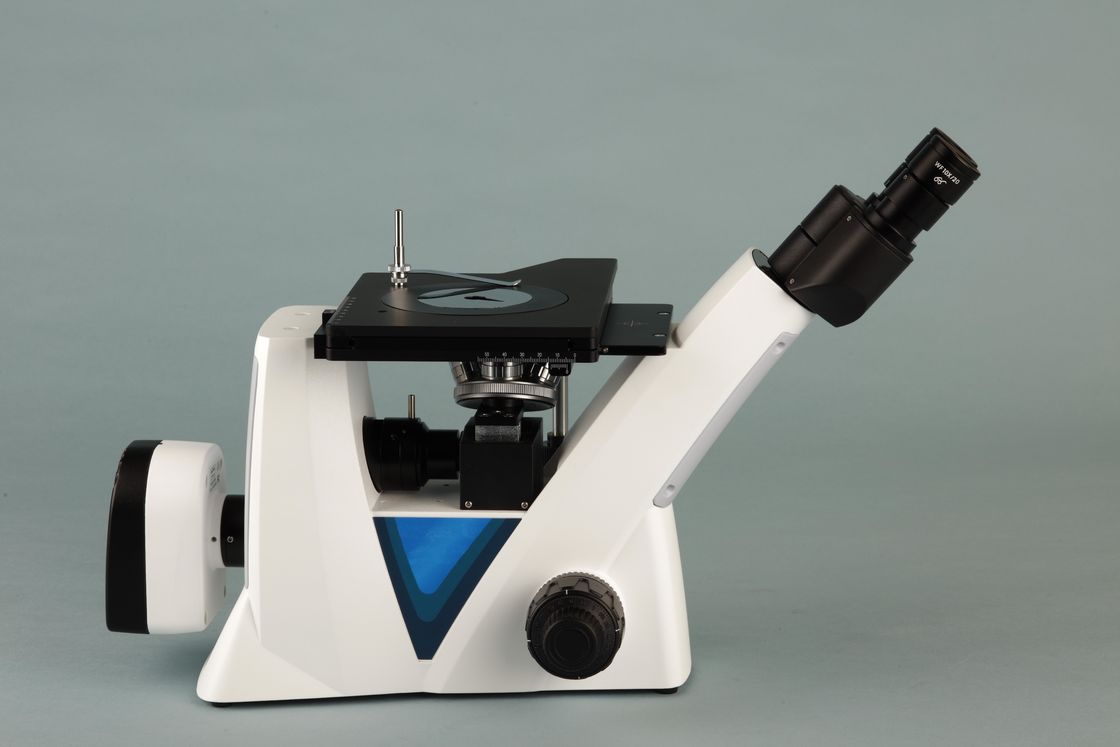

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation
50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation

Large Image :  50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13115
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation

Description
Color: 50X-1000X Metallurgical Microscope Drawtube: Binocular
Theory: Metallurgical Microscope Application: Machinery, Electronics, Plastics Etc.
Eyepiece: WF10X/20mm Magnification: 50X-1000X
Objective: 5X, 10X, 20X, 50X Nosepiece: 4 Holes Nosepiece
Focusing: Coaxial Coarse And Fine Adjustment Illumination: 5W LED
High Light:

50X-1000X Inverted Optical Microscope

,

Metallurgical Inverted Optical Microscope

,

Polarizing inverted compound microscope



Inverted 50X-1000X Metallurgical Microscope Combinated With Bright field, Polarizing Observation



M13115 Inverted 50X-1000X Metallurgical Microscope Combinated With Bright field, Polarizing Observation. This series inverted microscope are widely used in metal, mineral, electronic industry combinated with bright field, polarizing observation.



Features:

  • Large Size Three-layer Working Stage, More Choice for Samples.
  • New Designed and Humanized Butterfly Binocular. Head-Tubes Which Can Be 360°Rotated To Raise Observing Height Position Than Normal Tubes To Be More Convenient For Users With Different Height.
  • 5V-12V Low Voltage Input To Ensure Safe Use.
  • Power Bank Can Be Used for Power Supply, More Convenient for Field Inspection and Power-short Condition.
  • Built In LED Illumination System Which Can Be Powered with Power Bank, Laptop and Vehicle. Power Supply Ensure Being Used Anywhere and Any Condition.



Item Specification M13116A M13116B
Eyepiece WF10×/22mm(adjustable)
WF10×/22mm(adjustable,reticule 0.1mm)

Metallurgical LWD Infinity

Plan Objectives

LMPlan FL 5×/0.15

(Semi Apochromatic Objective)

W.D.=21.00mm

LMPlan FL 10× /0.30

(Semi Apochromatic Objective)

W.D.= 20.00mm

LMPlan FL 20× /0.40

(Semi Apochromatic Objective)

W.D.= 15.00mm

LMPlan FL 50× /0.55

(Semi Apochromatic Objective)

W.D.= 10.00mm
LPL 80×/0.80 W.D.= 0.85mm

LMPlan FL 100×0.85 (Dry)

(Semi Apochromatic Objective)

W.D.= 3.00mm

Metallurgical LWD Infinity

Plan Objectives for Bright & Dark Field

M PLAN 5×/0.13 BD W.D=7.30mm
M PLAN 10×/0.25 BD W.D.= 11.5mm
M PLAN 20×/0.40 BD W.D.= 5.60mm
M PLAN 50×/0.70 BD W.D.= 1.60mm
Seidentopf Trinocular Head

Inclined 30°, interpupilary distance: 48-76mm

Light distribution (both):100: 0(100% for eyepiece)

80:20(80% for trinocular head, and 20% for eyepiece)

Nosepiece Quintuple
Quadplex(specially for bright /dark field objectives)
Mechanical Stage Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm
Coaxial Coarse and Fine Focusing unit

Coarse stroke: 10mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm.

Polarizing Unit Polarizer /Analyzer
Illumination 12V/50W Halogen(Input voltage:100V~240V)
5WLED lamp (Input voltage:100V~240V)
Filter Blue
Green/ Amber/ Grey
C-mount 1×/0.75×/0.5×C-Mount (focus adjustable)
Adaptor for Digital Photograph Use for CANON/NIKON/OLYMPUS etc.

Note: ● means standard, ○ means optional



Combination with bight field, polarizing observation etc. Widely used in metal, mineral, electronic industry





M13115 With HDMI Camera and 10.1” HD Screen

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 0



M13115 with HDMI Camera, Users Can Use Their Own Screens

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 1



Large Size Three-layer Working Stage, More Choice for Samples

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 2



Analyzer & Polarizer for simple polarizing observation

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 3



New Designed and Humanized Butterfly Binocular Head-Tubes Which Can Be 360°Rotated To Raise Observing

Height Position Than Normal Tubes To Be More Convenient For Users With Different Height.

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 4



5V-12V Low Voltage Input To Ensure Safe Use. Power Bank Can Be Used for Power Supply, More Convenient for Field Inspection and

Power-short Condition

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 5



Built In LED Illumination System Which Can Be Powered with Power Bank, Laptop and Vehicle Power Supply Ensure Being Used Anywhere and Any Condition.

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 6



M13115 Inverted Metallurgical Microscope Size (mm)

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 7



M13115 Inverted Metallurgical Microscope General Layout Diagram

50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 8



Packing Size: 500mm×425mm×305mm

Gross Weight: 9.0kgs

Net Weight: 7.0kgs



50X-1000X Metallurgical Inverted Optical Microscope Polarizing Observation 9
