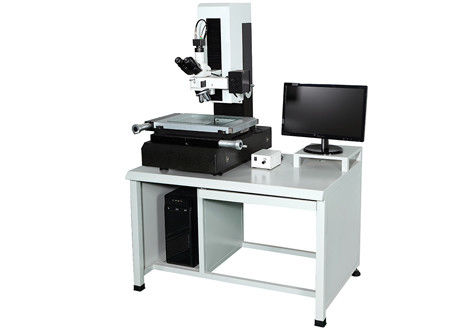

Tool-maker Vision Measurement Machine Microscope Instrument
M10101 Tool-maker Vision Measurement Machine Microscope Instrument Video Measuring Microscope, is an integrated high-magnification, micron-industry-aimed measuring instruments. Combined with powerful microscopic inspection technology, has been widely applied in many fields.
Features:
- Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.
- To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.
- To measure angle, for example, angle measurement for dials, templates, gauges, drilling template and those parts with complex structure.
- With PC and powerful metrology software, not only a microscope, but also a vision measuring system, can achieve professional measurement data management.
| Item | Description / Value |
| Head: | Trinocular Head |
| Eyepiece: | CFI 10x10 HD Eyepiece |
| Nosepiece: | Quadruple Nosepiece |
| Objective: | 5 sets of Objectives |
| X/Y measurement accuracy: | 1.5 μm+L/150 |
| Z axis measurement accuracy: | 1.0 μm+L/150 |
| Measuring Range: |
X-axis: 100mm minimum Y-axis: 100mm minimum Z-axis: 200 mm minimum |
| Lens barrel: | Trinocular Eyepiece Tube |
| Minimum resolution: | 0.5/0.1μm |
| Stage: | 100x100mm Precise Stsge |
| Camera: | DS-Vil Color Camera Head 2 million pixel HD CCD |
| Transmisson System: | Precision Grinding of C3 ball screw |
