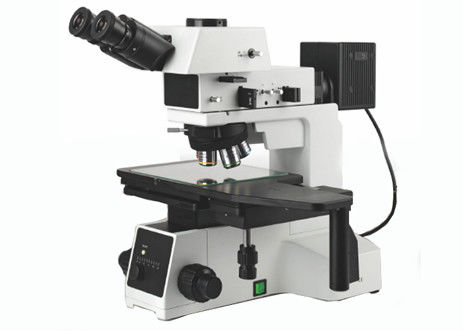

Trinocular Portable Metallurgical Microscope Transmission Light PL10X22mm 5W LED

Trinocular Portable Metallurgical Microscope Transmission Light PL10X22mm 5W LED
Trinocular Portable Metallurgical Microscope Transmission Light PL10X22mm 5W LED

Large Image :  Trinocular Portable Metallurgical Microscope Transmission Light PL10X22mm 5W LED

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10102
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union

Trinocular Portable Metallurgical Microscope Transmission Light PL10X22mm 5W LED

Description
Supply Ability: 1000 PCS/Month Color: White
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Drawtube: Trinocular
Theory: Metallurgical Microscope Lead-time: 15-20 Work Days
Optical System: Infinity Chromatic Aberration Correction Optical System Eyepiece: PL10X22mm
Head: Hinged Trinocular Head Objective: Bright Field And Dark Field Infinity Metallographic Objective
Nosepiece: 5 Holes Revolving Nosepiece Focusing: Coaxial Coarse And Fine Adjustment
High Light:

Trinocular portable metallurgical microscope

,

5W LED portable metallurgical microscope

,

PL10X22mm transmission light microscope



Trinocular Metallographic microscope with transmitted and reflected illumination for material analysis



M10102 Trinocular Metallographic microscope with transmitted and reflected illumination for material analysis, flexible system, excellent imaging performance and stable system architecture are special designed. This series are professionally used in industrial testing and metallographic analysis. The operating mechanism is based on ergonomic design, which can maximum reduce fatigue during using. Modular component design can freely assemble. This product integrated bright-field, oblique illumination, polarizing, DIC differential interference and other observed functions based on the practical application of functional selection.



Features:



- Achieving X, Y directions 105mmx105mm range of movement

- The new design of long working distance professional metallurgical objective, high power objective with semi-apochromatic technology

- Under a variety of observation methods, it’s available to get sharp and high-contrast microscopic image

- Well-equipped system with accessories can be flexibly combined with the functional expansion

- Ergonomic design, reliable system architecture



Item Description / Value
Head: Hinged trinocular head
Eyepiece: PL10X22mm
Nosepiece: 5 Holes Revolving Nosepiece
Objective: Bright field and dark field infinity metallographic objective
Stage: 6" Three-layer pile mobile platform, stroke 158x 158mm, Workbench, right hand position X, Y movable hand wheel, with clutch handle, can move quickly
Body: With coarse adjustment mechanism upper limit and tightness adjustment device. Built-in 100-240V wide voltage transformer, single power output
Focusing: Coaxial coarse and fine adjustment
Reflective illuminator system: With variable field of view, adjustable center, with color filter insert and polarizing device Plug, with switching mechanism of light and shade field, preset center, continuous light intensity adjustable
Transmitted lighting system: Single high-power 5W LED, white, light intensity continuously adjustable. N.A.0.5 condenser with variable aperture diaphragm
Gross Weight: 7.80 kg
package size: 64X34X41 cm
