Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15101
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular APO Led Fluorescent Microscope PL10x22mm Trinocular Head

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Fluorescence Microscope
Head: Compensation Trinocular Head Objective: Infinity Plan Semi-Apochromatic Fluorescence Objectives
Nosepiece: 5 Holes Revolving Nosepiece, Inward Focusing: Coaxial Focus System With Upper Limited And Tension Adjustment
Optical System: Infinity Color Corrected Optical System Stage: Double Layer Mechanical Stage
High Light:

PL10x22mm Led Fluorescent Microscope

,

APO Led Fluorescent Microscope

,

Trinocular APO epifluorescence microscope cost



Trinocular APO Led Fluorescent Microscope PL10x22mm Trinocular Head

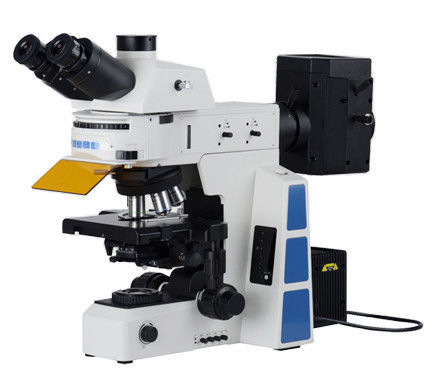

M15101 Trinocular APO Led Fluorescent Microscope PL10x22mm Trinocular Head Infinity chromatic aberration correction optical system, with the newly upgraded Kola lighting system makes clear and bright microscopic images at every magnification.



Features:

  • Brand new economic design, stable and reliable system structure, easier and more comfortable operation, suitable for various working environments.
  • The building block type function combination design can add various functional modules such as fluorescence, phase contrast, polarization, dark field, etc. on the basis of bright field.
  • It is widely used in various fields such as clinical diagnosis, teaching experiment, pathology detection, etc.
Items Specification M15101
Optical system Infinity color corrected optical system
Viewing head Efficient infinity gemel binocular head, 30°-60° elevation adjustable; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
30° inclined gemel binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
30° inclined gemel trinocular head, splitting ratio R:T=50:50; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
30° inclined gemel trinocular head (special for fluorescence), splitting ratio R:T=100:0 or 0:100; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
30° inclined digital binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
Eyepiece High eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled.
High eye-point wide field plan eyepiece PL15x16mm
Objective Infinity plan achromatic objectives (2X,4X,10X,20X,40X,100X)
Infinity plan phase contrast objectives (10X,20X,40X,100X)
Infinity plan semi-apochromatic fluorescence objectives (4X,10X,20X,40X,100X)
Nosepiece (with DIC slot) Revolving quadruple nosepiece/ quintuple nosepiece
Body Coaxial focus system with upper limited and tension adjustment; coarse range: 30mm; fine precision: 0.002mm; focus height adjustable.
Stage 175x145mm double layer mechanical stage, rotatable; with special fabrication processing, anti-corrosive and anti-friction; X,Y moving hand wheel in right or left hand; moving range: 76x50mm, precision : 0.1mm.
187x166mm double layer mechanical stage, moving range: 80x50mm, precision: 0.1mm.
Condenser N.A.0.9 swing-out type achromatic condenser;
N.A.1.2/0.22 swing-out type achromatic condenser;
N.A.1.25 quintuple phase contrast condenser;
N.A.0.9 dry dark field condenser;
N.A.1.25 oil dark field condenser.
Reflected fluorescence illumination system XYRFLP reflected fluorescence Koehler illumination with alterable field diaphragm and aperture diaphragm (center adjustable).
XYLH100HG mercury lamp house with viewfinder; the center and focal length of viewfinder &filament are adjustable.
U2-RFLT100 digital power control box of mercury lamp, wide voltage: 90-245VAC.
Imported OSRAM 100W DC mercury bulb; disc fluorescence filers: UV/VB/G; 30ND25-RFLP attenuation plate.
Transmitted illumination system Wide voltage: 100-240V, built-in transmitted Koehler illumination; 6V/30W halogen, pre-centered, intensity adjustable.
Polarizing kit Analyzer 360° rotatable; polarizer and analyzer can be out of light path.
Filter Yellow, green, blue, neutral filter
Light splitting device R:T=70:30 or 100:0, special 1x CTV
Camera adapter 0.5xCTV, 0.67xCTV, 1xCTV

Note: ● means standard, ○ means optional
