Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Fluorescence Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Eyepiece: | WF10X/22mm |
| Magnification: | 40X-1000X | Nosepiece: | 5-Position, Quintuple |
| High Light: | Trinocular Led Fluorescent Microscope,1000X Led Fluorescent Microscope,UIS light fluorescent microscope |
||

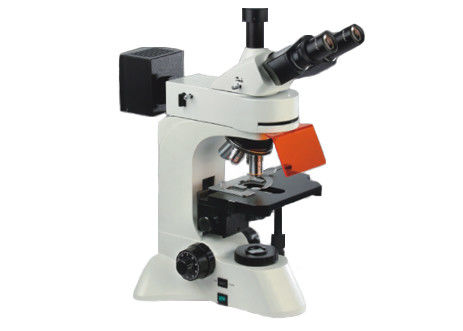

Trinocular LED EPI-Fluorescence UIS Optical Microscope
M15107 Trinocular LED EPI-Fluorescence UIS Optical Microscope. M15107 LED EPI-fluorescence microscope is equipped excellent UIS optical system and adopted modularization function design idea. The transmitted and epi-fluorescent illuminating light source is adopted high power & brightness LED. This kind of illumination has a lot of excellence, such as power consumption lower, good radiating heat effect, using safely and comfortably, lower cost of using and maintenance etc.
Features:
- Equipped with no magnification aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, can obtain excellent optical quality and operation performance.
- Can be used as transmitted light microscope.
- Widely applied in the biological pharmacy, medicine checking and measure.
-With excellent infinity optical system and stable stage, it is the ideal microscope for life-science and medical research.
| Item | Description / Value |
| Eyepiece: | High eye level wide field WF10X (Φ22mm). |
| Objective: |
Infinity plan achromatic objectives PL 4X/0.10 PL 10X/0.25 PLF L40X/0.85 (spring) (No magnification spherochromatic aberration) PL 100X/1.25 ( Spring, oil) |
| View tube: | Trinocular, 30° inclined. |
| Epi-fluorescent Illumination system: |
3W high brightness LED. Enable selecting monochromatic or binochromatic LED for light source, every monochromatic LED wave band: Green (520nm~530nm) Blue ( 460nm~470nm); Fluorescence filters: B (Blue) and G (Green). |
| Focusing: | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine 2um. |
| Nosepiece: | Five-position/quintuple (Backward ball bearing inner locating) |
| Stage: | Double layer mechanical (Size: 210mmX140mm, moving range: 75mmX50mm) |
| Transmitted illumination system: |
NA.1.25 Abbe condenser NA.1.25 Rack & pinion adjustable； Blue filter and Ground glass； Collector for LED illumination and integrated field diaphragm； 3W LED, 3W high brightness white LED, brightness adjustable. |
| Camera: | Optional |
