Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15104
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Epi-Fluorescence Science Lab Microscope 4X 100X Light Microscope Biology

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Fluorescence Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Infinity Plan Achromatic Optical System Magnification: 40X-1000X
Eyepiece: WF10X/18mm Objective: 4X/10X/40X/100X
Nosepiece: 4-Position Illumination: Halogen Lamp And Mercury Lamp
Condenser: Abbe Condenser NA1.25 Camera: Optional
High Light:

Epi-Fluorescence science lab microscope

,

100X science lab microscope

,

4X light microscope biology

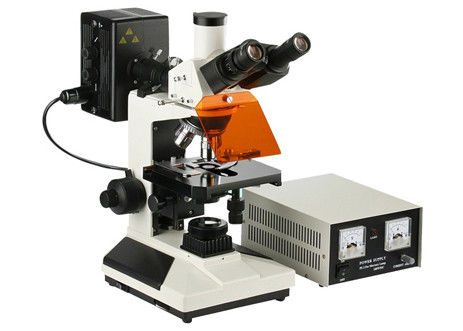

Epi-fluorescence Microscope For Life-science Research And Pathological Research



M15104 Epi-fluorescence Microscope For Life-science Research And Pathological Research. Fluorescence microscopy is a type of light microscope that works on the principle offluorescence. It uses fluorescence instead of, or in addition to, scattering, reflection, and attenuation or absorption, to study the properties of organic or inorganic substances. M15104 is an epi-fluorescence microscope specially designed for life-science research and pathological research.



Features:



- It is a high cost-performance fluorescence microscope.

- It can be used for cytology, oncology, medical research and immunology research etc.



Item Description / Value
Optical system: Plan achromatic optical system.
Observation: Bright field and Fluorescence.
View tube:

Trinocular, 30° inclined, 360° rotation.

IPD adjustment: 54mm ~ 75mm.

Diopter adjustment: ± 5 diopters.

Eyepiece: High eye level wide field WF 10 × (Φ18mm).
Objective: Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X
Nosepiece: Four-position/quadruple.
Stage: Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 160× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper.
Focusing: Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um.
Condenser: NA1.25.With aperture iris diaphragm.
Illumination system: High light long working life LED lamp for transmitted illumination, brightness adjustable.
Fluorescence Kit:

110W/DC Mercury lamp for fluorescence illumination.

Fluorescence filter: Optional

Blue: 420-485nm

Green: 460-550nm

UV :330-400nm

V: 95-415nm

Camera adapter: 0.5X or 1X C-Mount.
Camera: Optional
Power supply: AC100-240V, 50/60Hz.
