Inverted Fluorescence Biology Lab Microscope Edu Science Microscope 1200x 20X

Inverted Fluorescence Biology Lab Microscope Edu Science Microscope 1200x 20X
Inverted Fluorescence Biology Lab Microscope Edu Science Microscope 1200x 20X

Large Image :  Inverted Fluorescence Biology Lab Microscope Edu Science Microscope 1200x 20X

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Inverted Fluorescence Biology Lab Microscope Edu Science Microscope 1200x 20X

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Binocular Theory: Fluorescence Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Plan Achromatic Optical System Magnification: 40X-400X
Eyepiece: WF10X Objective: 10X/20X/40X
Nosepiece: Quadplex Condenser: Swing-out Abbe N.A.0.9-0.13
Illumination: Halogen Lamp Mercury Lamp Camera: Optional
High Light:

Inverted biology lab microscope

,

20X biology lab microscope

,

edu science microscope 1200x

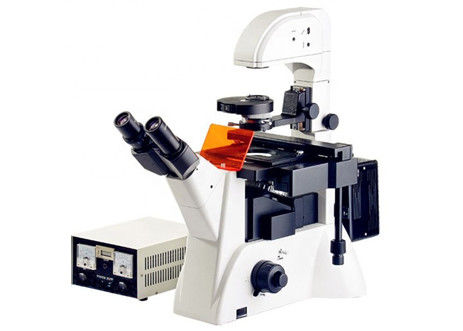

Inverted Fluorescence Microscope For Living Cell Culture And Tissue Analysis



M15106 is an inverted biological microscope specially designed for living cell culture and tissue analysis. Fluorescence microscopy is a type of light microscope that works on the principle of fluorescence. It uses fluorescence instead of, or in addition to, scattering, reflection, and attenuation or absorption, to study the properties of organic or inorganic substances.



Features:



- It can be used to observe specimen in high petri dish or culture vessel and cylindric flask.

- With excellent infinity optical system and stable stage, modularized fluorescence device and phase contrast module, it is the ideal microscope for life-science and medical research.

- It is especially fit for biopsy specimen or transparent liquid



Model Description / Value M15106A M15106B
Optical system Infinity Plan achromatic optical system.
Observation Bright field, Phase contrast, fluorescence.
Filter cube 2-position fluorescence filter cubes.
4-position fluorescence filter cubes.
View head

Trinocular, 45° inclined.

Inter-pupillary adjustment: 50mm-75mm.

Diopter adjustment: ±5.

Eyepiece WF10 ×/22mm, Central telescope for phase contrast.
Objective Long working distance Infinity Plan achromatic objective for bright field and fluorescence: 10x / 0.25, 20x / 0.40, 40x / 0.65.
Long working distance Infinity Plan achromatic objective for Phase contrast: PH 10x / 0.25
Stage

Fixed mechanical stage. Stage size: 227× 208mm, Glass board size: Φ118mm, XY-Moving range: 114mm ×78mm.

Specimen holder for culture vessels, slides etc.

Condenser Long working distance condenser with aperture diaphragm.
Illumination

Mercury lamp 100W for fluorescence illumination.

6V/30W halogen lamp for transmitted illumination.

Fluorescence filter

Fluorescence filter B group(Blue): excitation wavelength450-490nm

Fluorescence filter G group(Green): excitation wavelength495-555nm



Fluorescence filter B group(Blue): excitation wavelength450-490nm

Fluorescence filter G group(Green): excitation wavelength495-555nm Fluorescence filter UV group(Blue): excitation wavelength320-380nm

Fluorescence filter V group(Green): excitation wavelength380-415nm


Focusing

Coaxial coarse and fine focusing mechanism, fine focusing accuracy 2um.

With a travel stop to prevent the lens from contacting the specimen.

Tension adjustment of coarse regulation knob.

Camera

6.3MP USB3.0 camera with software

Digital camera for microscope with control software. Can Taking photo, recording video, measuring, with Focus stacking, real time Image stitching function.

Resolution: 6.3MP, 3072*2048

Sensor: Sony 1/1.8inch, 2.4um*2.4um.

Frame rate: 40fps.

Professiona microsocpe software:

For win7/8/10, 64bit.

Time-lapse. Control of all microscope and camera functions from one program.

Taking photo and recording video of phase contrast&dark field&bright field&fluorescence image.

Full camera function control by software. Automatic shutter control by software.Calibration according to lenses used.

Annotation in images, Image edit. Automatic exposure/Manual exposure/area exposure.

Automatic continous white balance/One touch white balance/area white balance.

Power supply 100-240 VAC 50/60Hz.

Remarks: ● Means Standard ○ Means Optional
