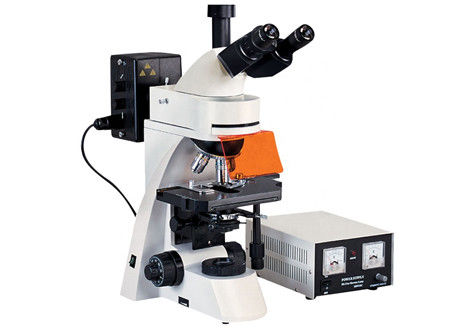

Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope

Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope
Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope

Large Image :  Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15102
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Led Fluorescence Microscope 1000X Kohler Illumination UV Light Microscope

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Fluorescence Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Viewing Head: Trinocular Head Inclined Eyepiece: WF10X
Objectives: 4X, 10X, 40X, 100X (Oil) Nosepiece: Quadruple Nosepiece
Fluorescence Filter: Blue /green/UV/V Focusing: Coarse Adjustment Focusing
Illumination: Kohler Illumination System Camera: Optional
High Light:

1000X led fluorescence microscope

,

Trinocular led fluorescence microscope

,

Kohler Illumination uv light microscope



40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope



M15102 40X-1000X Binocular Trinocular Fluorescence Microscope Medical Microscope Pathology Microscope Infinity chromatic aberration correction optical system, with the newly upgraded Kohler lighting system makes clear and bright microscopic images at every magnification.



Features:



- It is an infinity fluorescence microscope with excellent optical system.

- It can be used to for biology, cytology, oncology, genetics and immunology research.



Item Description / Value
Optical system: Infinity achromatic optical system
Observation: Bright field and Fluorescence.
View tube:

Trinocular, 30 ° inclined, 360° rotation.

IPD adjustment: 54mm ~ 75mm.

Diopter adjustment: ± 5 diopters.

Eyepiece: High eye level wide field WF 10 × (Φ22mm).
Objective: Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X
Nosepiece: Standard: Four-position/quadruple. Optional: Five-position/quintuple
Stage: Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 210× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper.
Focusing: Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um.
Condenser: NA1.25.With aperture iris diaphragm.
Illumination system: High light long working life LED lamp for transmitted illumination, brightness adjustable.
Fluorescence Kit:

Mercury lamp: 100W/DC for fluorescence illumination. Fluorescence filter: Optional

Blue: 420-485nm.

Green: 460-550nm.

UV: 330-400nm.

V: 95-415nm.

Camera adapter: 0.5X or 1X C-Mount.
Camera: Optional
Power supply: AC100-240V, 50/60Hz.
