Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research

Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research
Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research

Large Image :  Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Camera Infinity Epi Led Fluorescent Microscope WF10X Eyepiece Genetics Research

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Fluorescence Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Eyepiece: WF10X Light Source: 6V 20W Halogen Lamp
High Light:

WF10X Led Fluorescent Microscope

,

Camera Led Fluorescent Microscope

,

Trinocular epi fluorescence microscope

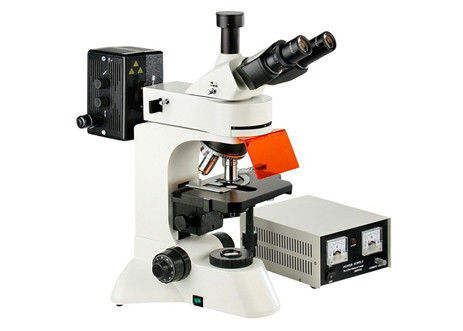

Trinocular Infinity EPI Fluorescence Microscope With Camera For Genetics Research And Immunology



M15105 Trinocular Infinity EPI Fluorescence Microscope With Camera For Genetics Research And Immunology. Fluorescence microscopy is a type of light microscope that works on the principle of fluorescence. It uses fluorescence instead of, or in addition to, scattering, reflection, and attenuation or absorption, to study the properties of organic or inorganic substances. M15104 is an epi-fluorescence microscope specially designed for life-science research and pathological research.



Features:



- Ideal for cytology, oncology, medical research and immunology research etc.

- Max magnification: 1000X.

- High cost-performance.



Item Description / Value M15105
View tube: Infinity view tube. Trinocular 30° inclined. Interpupillary distance From 50 to 75 mm. Dioptric shift on one tube.
Optical system: Infinity achromatic optical system, all lenses are multi fully coated optical galss.
Observation: Fluorescence, bright field
Eyepiece: High eye level wide field WF PL10x / 22mm
Fluorescence filter:

Fluorescence filter B group(Blue): excitation wavelength 450-490nm

Fluorescence filter G group(Green): excitation wavelength 495-555nm

Fluorescence filter UV group: excitation wave length 330-400nm

Fluorescence filter V group: excitation wave length 395-415nm

Fluorescence kits: Mercury lamp: 100W/DC, with power controller.
LED illuminator.
Illumination: Transmitted Illuminator: 6V/20W Halogen lamp, the brightness is adjustable.
LED lamp
Nosepiece: Quadruple
Objective:

Infinity Plan achromatic objective:

PL 4X/0.1, working distance: 19.8mm

PL 10X/0.25, working distance: 5.0mm

PLF L40X/0.65(spring), working distance: 0.42mm

PL 100X/1.25(spring, oil), working distance: 0.36mm

Stage:

Double layer mechanical stage with clicks and scales.

Can holder 2 slider.

Stage size: 210× 140mm, moving range: 75mm ×50mm.

XY movement accurancy: 0.1mm.

Coaxial control mechanism with right handles.

Focusing

mechanism:

Coaxial focus mechanism with knobs on both sides.

Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.002mm.

Coarse movement: 28mm.

Condenser: Abbe condenser N.A.1.25 can move up and down.
Camera adapter: 0.5X or 1X C-Mount.
Camera:

6.3MP digital camera and software for win7/10.

Software can capture image, record video.

With Focus stacking and image stitching.

Accessories: Dust cover, manual, all necessnary cables.

Note: ● means standard, ○ means optional
