WF10X/22mm Led Fluorescent Microscope Inverted 4X 10X 360 Degree

WF10X/22mm Led Fluorescent Microscope Inverted 4X 10X 360 Degree
WF10X/22mm Led Fluorescent Microscope Inverted 4X 10X 360 Degree

Large Image :  WF10X/22mm Led Fluorescent Microscope Inverted 4X 10X 360 Degree

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

WF10X/22mm Led Fluorescent Microscope Inverted 4X 10X 360 Degree

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Fluorescence Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Infinity Plan Achromatic Optical System Magnification: 40X-1000X
Eyepiece: WF10X/22mm Objective: 4X/10X/40X/100X
Nosepiece: Four/Five Position Focusing: Coaxial Coarse And Fine Focusing
Illumination: LED Transmitted Illumination Application: Biology, Cytology, Oncology, Genetics, Immunology.
High Light:

360 degree Led Fluorescent Microscope

,

WF10X/22mm Led Fluorescent Microscope

,

4X 10X inverted epifluorescence microscope



Infinity Led Fluorescence Microscope

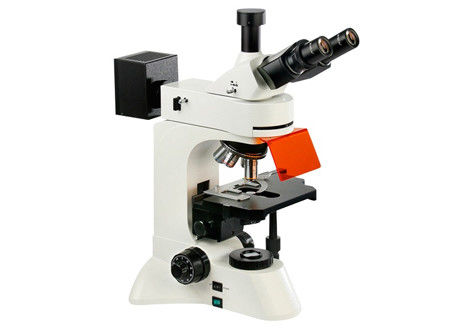

M15103 Infinity Led Fluorescence Microscope M15103 is an epi-fluorescence microscope with LED illumination for fluorescence and transmitted illumination.



Features:



- LED illumination for fluorescence ensuring safety and long working life. It don‘t need cooling for restart.

- It can be used to for biology, cytology, oncology, genetics and immunology.



Item Description / Value
Optical system: Infinity plan achromatic optical system.
Observation: Bright field and Fluorescence.
View tube:

Trinocular, 30 ° inclined, 360° rotation.

IPD adjustment: 54mm ~ 75mm.

Diopter adjustment: ± 5 diopters.

Eyepiece: High eye level wide field WF 10 × (Φ22mm).
Objective: Infinity Plan achromatic fluorescence objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X/1.25(Spr., Oil.), Optional: 20X
Nosepiece: Standard: Four-position/quadruple. Optional: Five-position/quintuple
Stage: Double layer mechanical stage, well-coated coaxial with right hand low drive control. Stage size: 210× 142mm. Traveling range(X-Y): 75mm ×50mm. Double specimen holder, with specimen position scale (graduation reading up to 0.1mm). With XY movement stopper.
Focusing: Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. High sensitive fine focusing knob with minimum adjustment graduation 1um.
Condenser: NA1.25.With aperture iris diaphragm.
Illumination system: High light long working life LED lamp for transmitted illumination, brightness adjustable.
Fluorescence Kit:

Mercury lamp: 100W/DC for fluorescence illumination. Fluorescence filter: Optional

Blue: 420-485nm.

Green: 460-550nm.

UV: 330-400nm.

V: 95-415nm.

Camera adapter: 0.5X or 1X C-Mount.
Camera: Optional
Power supply: AC100-240V, 50/60Hz.
