Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Application: | Machinery, Electronics, Plastics Etc. | Eyepiece: | CFI 10x10 HD |
| Minimum Resolution: | 0.5/0.1μm | Objective: | 5 Sets Of Objectives |
| X/Y Measurement Accuracy: | 1.5 μm+L/150 | Z Axis Measurement Accuracy: | 1.0 μm+L/150 |
| Nose Wheel: | Quadruple Nosepiece | Lens Barrel: | LV-TI 3 Trinocular Eyepiece Tube |
| High Light: | LV TI 3 Optical Metallurgical Microscope,HD CFI 10x10 Optical Metallurgical Microscope,CE Phidix universal measuring microscope |
||

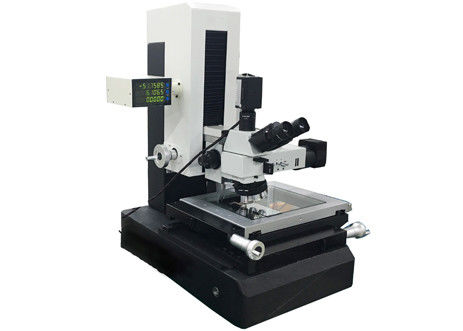

DIC System Universal Measuring Microscope
M10104 DIC System Universal Measuring Microscope Video Measuring Microscope is an integrated high-magnification, micron-industry-aimed measuring instruments combined with powerful microscopic inspection technology, has been widely applied in many fields.
Features:
- Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.
- To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.
- To measure angle, for example, angle measurement for dials, templates, gauges, drilling template and those parts with complex structure.
- With PC and powerful metrology software, not only a microscope, but also a vision measuring system can achieve professional measurement data management.
| Item | Description / Value |
| Head: | Trinocular head |
| Measuring Range: | X-axis: 300mm minimum, Y-axis: 200mm minimum, Z-axis: 200 mm minimum |
| Minimum resolution: | 0.5/0.1μm |
| Optical Part: | Professional differential interference optical head |
| Multilayer coating technology ensures clarity | |
| Light path and high power objective lens observation | |
| Equipped with LED surface light and bottom light | |
| Transmission System: | Precision Grinding of C3 ball screw |
| Camera: | DS-Vil Color Camera Head 2 million pixel HD CCD |
| Objective lens: | M Plan Apo HL 5X |
| M Plan Apo HL 10X | |
| M Plan Apo HL 20X | |
| M Plan Apo HL 50X | |
| Stage: | 100x100mm Precise Stage |
| Light source system: | 5W LED up and down light source |
| Polarization system | |
| DIC |
