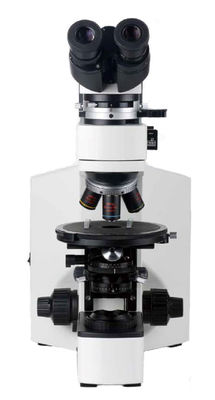

PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope

PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope
PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope

Large Image :  PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14102
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

PL10X22mm Transmission Light Microscope 20x 50x Digital Polarizing Microscope

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Polarizing Microscope
Head: Tilted 30° Hinged Viewing Head Eyepiece: PL10X22mm
Nosepiece: Two Options Focusing: Customized
Stage: Rotating Work Platform Condenser: NA=1.2
High Light:

PL10X22mm transmission light microscope

,

20x transmission light microscope

,

50x digital polarizing microscope



Optical Trinocular Industrial Polarizing Microscope

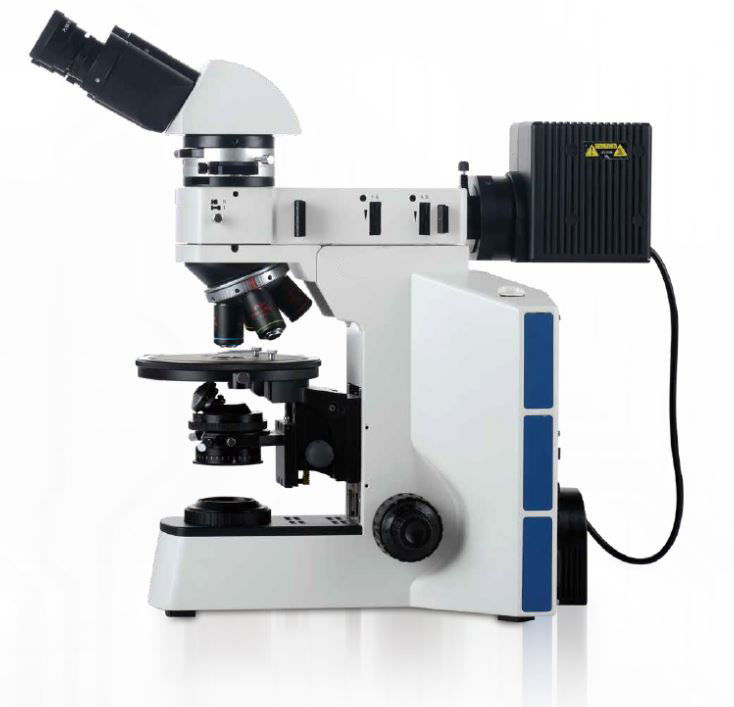

M14102 Optical Trinocular Industrial Polarizing Microscope Polarizing microscope is an indispensable instrument for the research and identification of birefringent substances by using the polarization characteristics of light. It can be used for single-polarized observation, cross-polarized observation and conoscopic observation. It’s a method of changing ordinary light into polarized light for microscopic inspection to identify whether a substance is single refraction (anisotropy) or birefringence (anisotropy). Birefringence is the basic characteristic of crystals. Therefore, polarized light microscopes are widely used in minerals, chemistry and other fields. In humans and zoology, polarized light microscopy is often used to identify bones, teeth, cholesterol, nerve fibers, tumor cells, striated muscle, and hair.



Features:



- Improved stress-relieving imaging system, reflective illuminator, lamp room, higher polarization degree and move vivid image effect

- Y-shape roof structure, high rigidity, high stability

- Professional conoscopic observation mirror group

- The 160mm large-diameter metal working platform can be rotate 360 degree smoothly, and locked and positioned at any angle in any time



Items Specification M14102
Optical system Infinity color corrected optical system

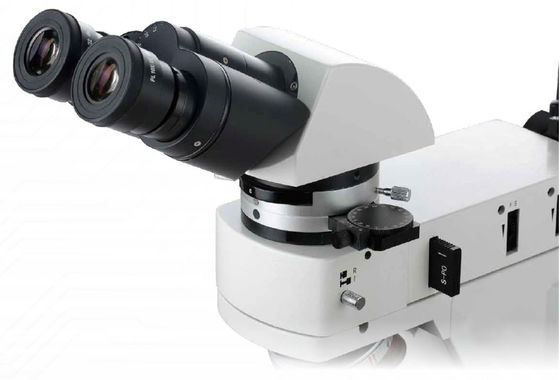

Viewing head 30° inclined gemel binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable
30° inclined gemel trinocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable, splitting ratio R:T=100:0or 50:50
30°~60° tilting binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable
Eyepiece High eye-point wide field plan eyepiece PL10X22mm
High eye-point wide field plan eyepiece PL10X22mm, with reticle
High eye-point wide field plan eyepiece PL15X16mm

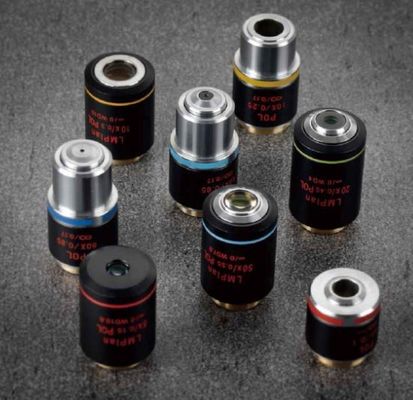

Objective LWD plan destressing objective 5X/10X/20X/50X
Plan destressing objective 4X/10X/20X/40X/60X
Intermediate tube With removable internal Bertrand lens, analyzer and compensators. Bertrand lens with rotating switch, centerable, focusing recyclable.
Analyzer Pluggable analyzer, 360°rotatable, 2°increments, precision 6′, with locking device
Compensator Gyps 1λ (Φ18mm,optical path difference 551nm)
Mical 1/4λ (Φ18mm,optical path difference 147.3nm)
Quartz Wedge(Ⅰ-Ⅳ)
Nosepiece (with DIC slot) Revolving centerable quadruple nosepiece
Revolving centerable quintuple nosepiece
Focus adjustment Transmitted frame/ Transmitted & Reflected frame/ Reflected frame
Coarse focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision 0.002mm
Stage Dia.160mm circular metal stage, graphite coating, anti-corrosive and anti-friction, 360° rotatable, 1° increment, precision 6′
Condenser Swing-out achromatic condenser(N.A. 1.2), with 360° rotatable polarizer, four adjustable scale: 0/90/180/270
Reflected illumination Wide-range voltage 100V-240V_AC50/60Hz, 12V/50W halogen lamp house, imported bulb, center presetting, reflected illuminator with LBD filter and pluggable polarizer, field diaphragm and aperture diaphragm adjustable
Transmitted illuminator Koehler illumination, wide-range voltage 100V-240V_AC50/60Hz. 12V/50W halogen lamp house, imported bulb, center presetting, with iris diaphragm

Others



Yellow/neutral/IF550/LBD filter for transmitted light
Digital camera adapters: 1X, 2/3, 1/2 focusing C-mount; 3.2X photo eyepiece; photo tube with PK or MD mount; camera relay lens
Mechanical stage, moving range: 30mm*40mm
High precision micrometer, 0.01mm increment

Note: ● means standard, ○ means optional
