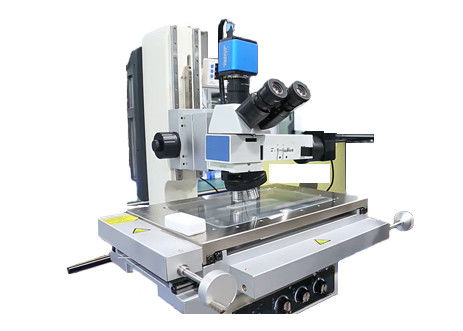

PL10X22mm 5X 10X 20X 50X Optical Metallurgical Microscope Travelling Scale

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

PL10X22mm 5X 10X 20X 50X Optical Metallurgical Microscope Travelling Scale

PL10X22mm 5X 10X 20X 50X Optical Metallurgical Microscope Travelling Scale
PL10X22mm 5X 10X 20X 50X Optical Metallurgical Microscope Travelling Scale

Large Image :  PL10X22mm 5X 10X 20X 50X Optical Metallurgical Microscope Travelling Scale

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10107
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union

PL10X22mm 5X 10X 20X 50X Optical Metallurgical Microscope Travelling Scale

Description
Supply Ability: 1000 PCS/Month Color: White
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Drawtube: Trinocular
Theory: Metallurgical Microscope Lead-time: 15-20 Work Days
Application: Machinery, Electronics, Plastics Etc. Eyepiece: PL10X22mm
Optical System: Infinity Chromatic Aberration Correction Optical System Head: Hinged Trinocular Head
Objective: Bright Field And Dark Field Infinity Metallurgical Objective Nosepiece: 5 Holes Revolving Nosepiece
Focusing: Coaxial Coarse And Fine Adjustment Stage: 4" Three-layer Mechanical Mobile Platform
High Light:

PL10X22mm Optical Metallurgical Microscope

,

10X 5X Optical Metallurgical Microscope

,

20X 50X travelling microscope scale



Tool Maker Measuring Travelling Microscope



M10107 Tool Maker Measuring Travelling Microscope This product has an excellent performance in the industrial area. Video Measuring Microscope is an integrated high-magnification, micron-industry-aimed measuring instruments. Combined with powerful microscopic inspection technology, it has been widely applied in many fields.



Features:



- For angle measurement such as dials, templates, gauges, drilling template and those parts with complex structure.

- It will turn into a vision measuring system, achieving professional measurement data management with PC and powerful metrology software.

- Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.

- To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.



Item Description / Value
Head: Trinocular
Optical System: Infinity chromatic aberration correction optical system
Measuring Range: X-axis: 300mm minimum, Y-axis: 200mm minimum, Z-axis: 200 mm minimum
Minimum resolution: 0.5/0.1μm
Optical Part: Professional differential interference optical head
  Multilayer coating technology ensures clarity
  Light path and high power objective lens observation
  It is equipped with LED surface light and bottom light.
Transmission System: Precision Grinding of C3 ball screw
Camera: DS-Vil Color Camera Head 2 million pixel HD CCD
Objective lens: M Plan Apo HL 5X, 10X, 20X, 50X
Stage: 300x200mm Precise Stage
