Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Application: | Machinery, Electronics, Plastics Etc. | Eyepiece: | CFI 10x10 HD Eyepiece |
| Objective Lens: | 5 Sets Of Objectives | X/Y Measurement Accuracy: | 1.5 μm+L/150 |
| Z Axis Measurement Accuracy: | 1.0 μm+L/150 | Nose Wheel: | Quadruple Nosepiece |
| Lens Barrel: | LV-TI 3 Trinocular Eyepiece Tube | Minimum Resolution: | 0.5/0.1μm |
| High Light: | 50X 20X transmitted electron microscope,10x10 CFI transmitted electron microscope,LV-TI 3 trinocular microscope for electronics |
||

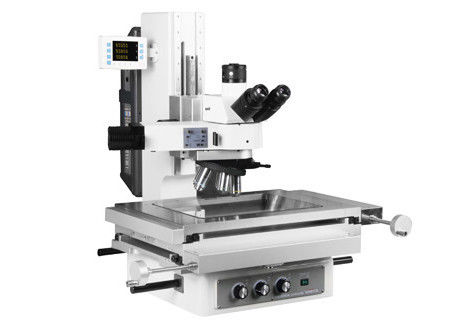

CAD Software Toolmakers Measuring Microscope
M10108 CAD Software Toolmakers Measuring Microscope With the aid of CAD software, this product can be applied in the various industrial area. Video Measuring Microscope, combined with powerful microscopic inspection technology, is an integrated high-magnification, micron-industry-aimed measuring instruments.
Features:
- To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.
- It will turn into a vision measuring system, achieving professional measurement data management with PC and powerful metrology software.
- For angle measurement such as dials, templates, gauges, drilling template and those parts with complex structure.
- Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.
| Item | Description / Value |
| Optical System: | Infinity chromatic aberration correction optical system |
| Head: | Trinocular |
| Eyepiece: | CFI 10x10 HD Eyepiece |
| Objective lens: | M Plan Apo HL 5X, 10X, 20X, 50X |
| Lens barrel: | LV-TI 3 Trinocular Eyepiece Tube |
| Optical Part: | Professional differential interference optical head |
| Multilayer coating technology ensures clarity | |
| Light path and high power objective lens observation | |
| It is equipped with LED surface light and bottom light. | |
| Measuring Range: |
X-axis: 150mm minimum Y-axis: 100mm minimum Z-axis: 150 mm minimum |
| Minimum resolution: | 0.5/0.1μm |
| Transmission System: | Precision Grinding of C3 ball screw |
| Camera: | DS-Vil Color Camera Head 2 million pixel HD CCD |
| Stage: | 150x100mm Precise Stage |
