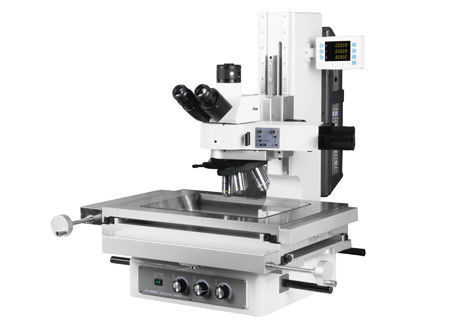

Auto Focus Optical Metallurgical Microscope Portable Trinocular DIC Camera

Auto Focus Optical Metallurgical Microscope Portable Trinocular DIC Camera
Auto Focus Optical Metallurgical Microscope Portable Trinocular DIC Camera

Large Image :  Auto Focus Optical Metallurgical Microscope Portable Trinocular DIC Camera

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10109
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Auto Focus Optical Metallurgical Microscope Portable Trinocular DIC Camera

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Application: Machinery, Electronics, Plastics Etc. Eyepiece: CFI 10x10 HD Eyepiece
Objective Lens: 5 Sets Of Objectives X/Y Measurement Accuracy: 1.5 μm+L/150
Z Axis Measurement Accuracy: 1.0 μm+L/150 Nose Wheel: Quadruple Nosepiece
Lens Barrel: LV-TI 3 Trinocular Eyepiece Tube Minimum Resolution: 0.5/0.1μm
High Light:

Phidix 1 PC Optical Metallurgical Microscope

,

LV-TI 3 CE Optical Metallurgical Microscope

,

CFI 10x10 HD portable metallurgical microscope



Mechanic DIC Camera Auto Focus Measuring Inspection Metallurgical Microscope



M10109 Mechanic DIC Camera Auto Focus Measuring Inspection Metallurgical Microscope Auto focus is a special point of the video Measuring Microscope. Combined with powerful microscopic inspection technology, as an integrated high-magnification, micron-industry-aimed measuring instruments, it can be applied in the various industrial area.



Features:



- This machine can measure pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.

- As a vision measuring system, achieving professional measurement data management with PC and powerful metrology software.

- It widely used for angle measurement such as dials, templates, gauges, drilling template and those parts with complex structure.

- To inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on, used as observational microscope.



Item Description / Value
Measuring Range:

X-axis: 200mm minimum

Y-axis: 150mm minimum

Z-axis: 200 mm minimum

Minimum resolution: 0.5/0.1μm
Eyepiece: CFI 10x10 HD Eyepiece
Objective lens: M Plan Apo HL 5X
  M Plan Apo HL 10X
  M Plan Apo HL 20X
  M Plan Apo HL 50X
Optical Part: Professional differential interference optical head
  Multilayer coating technology ensures clarity
  Light path and high power objective lens observation
  It is equipped with LED surface light and bottom light.
Transmission System: Precision Grinding of C3 ball screw
Camera: DS-Vil Color Camera Head 2 million pixel HD CCD
Stage: 200x150mm Precise Stage



Auto Focus Optical Metallurgical Microscope Portable Trinocular DIC Camera 0
