Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Optical System: | Infinity Chromatic Aberration Correction Optical System | Eyepiece: | PL10X22mm PL15X/16mm |
| Head: | Hinged Trinocular Head | Objective: | Plan Achromatic Metallographic Objective |
| Objective 2: | Plan Half-cancellation Metallographic Objective | Nosepiece: | 5 Holes Revolving Nosepiece |
| Focusing: | Coaxial Coarse And Fine Adjustment | Stage: | Metal Stage Board |
| High Light: | Hinged Trinocular biology lab microscope,Chromatic biology lab microscope,Trinocular polarized light microscopy |
||

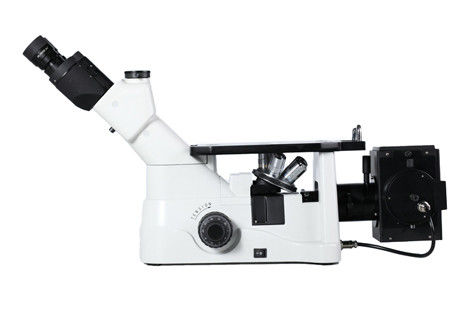

Professional Manufacture Optical Polarizing Inverted Metallurgical Microscope
M13101 Professional Manufacture Optical Polarizing Inverted Metallurgical Microscope Optical system: Infinity chromatic aberration correction optical system (CSIS), with better image quality, higher resolution, and more comfortable observation.
Features:
- Eyepieces and objective lenses: high eye-point, ultra-wide field of view plan eyepieces, PL10x/22mm, provide a wider and flat observation space and can be equipped with various types of micrometers for measurement, infinite plan achromatic long work Distance to professional metallographic objective lens, no cover glass design.
- Observation tube: hinged trinocular, adjustable diopter, 45° tilt, can be used for photography, capture and save observation images, configure computer and professional software to realize image analysis
- Focusing mechanism: low-hand position coarse and fine adjustment coaxial focusing mechanism, with coarse adjustment device for tightness adjustment, the stroke of coarse adjustment is 38mm per revolution, and the precision of fine adjustment is 0.002mm.
- Illumination system: Reflective Kola illuminator with iris diaphragm and center adjustable field diaphragm, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and extend the service life of halogen bulbs.
- Stage: Coaxial low-hand position adjustment movable ruler and stage extension board can be added to expand the application space and meet the needs of customers with different needs.
| Item | Description / Value |
| Head: | Trinocular |
| Optical System: | Color corrected infinity optical system (CSIS) |
| Eyepiece: |
PL10X/22mm PL15X16mm, Optional |
| Objective: |
Plan achromatic metallographic objective lens with infinite long working distance: LMPL5X /0.15 /WD10.8 LMPL10X/0.3 /WD10 LMPL20X/0.45 /WD4 Infinite long working distance plan semi-cancellation metallographic objective lens: LMPLFL50X/0.55 /WD7.8 LMPLFL100X/0.80 /WD2.1 |
| Nosepiece: | 5 Holes Revolving Nosepiece |
| Focusing: | Low position coaxial focus system with tension adjustable, coarse:38mm per rotation, fine precision 0.002mm(2µ) |
| Stage: | Fixed stage, Size:175mmX145mm, can mount specimen fixture, extension plate and the coaxial mechanical mobile ruler |
| Illuminator: | Reflection Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240V. 12V/50W halogen bulb, with continuous intensity |
| Polarizing kit: | 360° rotary analyzer and the polarizer both can shift out the optical way |
| Camera Adapter: | Metal stage plate, Slides holder(φ54 and 26.5X76.5), Terasaki holder(φ64mm and 56X81.5 ), Mechanical mobile ruler 120*78, Stage extension plate |
