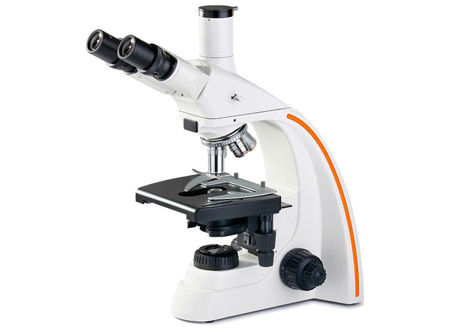

Lab 1000X Trinocular Phase Contrast Microscope Bright Field LED Light Source

Lab 1000X Trinocular Phase Contrast Microscope Bright Field LED Light Source
Lab 1000X Trinocular Phase Contrast Microscope Bright Field LED Light Source

Large Image :  Lab 1000X Trinocular Phase Contrast Microscope Bright Field LED Light Source

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17101
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Lab 1000X Trinocular Phase Contrast Microscope Bright Field LED Light Source

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 1000X Eyepiece: WF10 X/22mm
Objective: PL4X/0.1, 10X/0.25, 40X/0.65, 100X(oil) Focusing: Coarse And Fine Adjustment Focusing
Nosepiece: Quadruple Nosepiece Light Source: LED Or Halogen Lamp
High Light:

1000X Trinocular Phase Contrast Microscope

,

Lab Trinocular Phase Contrast Microscope

,

LED bright field microscope



Trinocular Phase Contrast Dark Field Bright Field Digital Video Biology Microscope For Lab Research Teaching



M17101 Trinocular Phase Contrast Dark Field Bright Field Digital Video Biology Microscope For Lab Research Teaching Dark-field microscope (dark-ground microscope) describes microscope methods, the field around the specimen (i.e., where there is no specimen to scatter the beam) is generally dark. Phase-contrast microscope is an optical-microscope technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations.



Features:



- Competent for scientific research, medicine, industry, agriculture and education.

- Uniform illumination with consistent color temperature.

- With excellent Flat field achromatic infinity optical system ensure high image flatness across the field.

- Excellent contrast via simple aperture iris operation.

- Enables users to remain comfortable during long periods of routine microscopy observations.

- The location of the control knobs maximized ergonomics to improve work efficiency. Users can quickly set up a specimen with one hand, while adjusting the focus and operating the stage with the other hand with minimal movement. The microscope also features an optional camera port for digital imaging.

- Max magnification: 1000X or 1600X.

- With camera it can connect to computer or screen, taking photo and recording video as well.

- Optional Module: Dark field, Phase contrast, fluorescence (Standard configuration is bright field). Please view solution for difference of Dark field, Phase contrast and Bright field.



Item Description / Value
Optical system: Infinity flat field achromatic optical system
View tube:

Hinge trinocular, 30 ° Tilt, 360°rotating

IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5 diopters, Splitting ratio: 100: 0 or 50:50

Eyepiece: High eye level wide field WF10 × (Φ22mm)
Objective: Infinity flat field achromatic objective lens: PL4X/0.1, 10X/0.25, 40X/0.65, 100X (oil).
Nosepiece: Four-hole converter
Stage: Stage size:175 × 145mm., moving range: 76mm ×50mm , Precision: 0.1mm
Focusing mechanism:

Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy :0.002mm.

Light source: Transmission illumination system, High light power LED, brightness could be adjusted.
Condensor: NA1.25 can be moved up and down.
Filter: Blue filter, grand glass.
