Measurement Software Optical Polarizing Microscope Digital 40X 1000X

Measurement Software Optical Polarizing Microscope Digital 40X 1000X
Measurement Software Optical Polarizing Microscope Digital 40X 1000X

Large Image :  Measurement Software Optical Polarizing Microscope Digital 40X 1000X

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Measurement Software Optical Polarizing Microscope Digital 40X 1000X

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Plan Achromatic Optical System Magnification: 40X-1000X
Eyepiece: WF10X Objective: Achromatic 4X/10X/40X/100X
Nosepiece: Quadruple Nosepiece Focusing: Coarse Adjustment Focusing
Illumination: LED Or Halogen Illumination Camera: Optional
High Light:

1000X Optical Polarizing Microscope

,

Measurement Software Optical Polarizing Microscope

,

Camera digital polarizing microscope

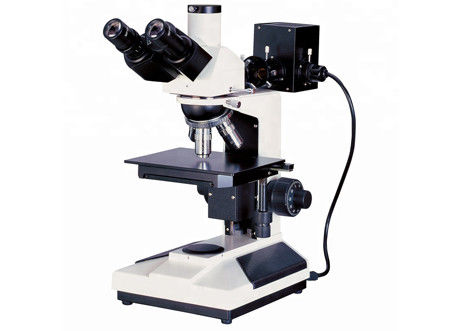

Metallurgical Polarizing Microscope With Digital Camera And Measurement Software



M14103 Metallurgical Polarizing Microscope With Digital Camera And Measurement Software. Polarizing is a method of changing ordinary light into polarized light for microscopic inspection to identify whether a substance is single refraction (anisotropy) or birefringence (anisotropy). Birefringence is the basic characteristic of crystals. Therefore, polarized light microscopes are widely used in minerals, chemistry and other fields. In humans and zoology, polarized light microscopy is often used to identify bones, teeth, cholesterol, nerve fibers, tumor cells, striated muscle and hair.



Features:



- This product is a high cost-effective microscope.

- It is widely used for chip detecting, material analysis, mineral analysis and metal analysis etc.



Item Description / Value
Optical system: Plan Achromatic optical system
View tube:

Trinocular, 30° inclined, 360°rotating.

Splitting ratio: 100:0 or 0:100.

IPD adjustment: 50mm ~ 75mm, Diopter adjustment: ± 5 diopters.

Eyepiece: High eye level WF PL10X(Φ18mm)
Objective: Plan Achromatic long working distance metallurgical objective: Standard: PL 5X, PL10X, PL L20X, PL L50X, Optional: PL L100X
Nosepiece: Quadruple (4-position).
Stage:

Double layer mechanical stage, stage size: 185*140mm, moving range: 75mm*50mm.

Right hand control for X and Y direction.

Focusing system:

Coaxial coarse and fine focusing system.

Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.002mm.

Focusing stopper for protecting objective and sample.

Illumination:

Transmitted and reflected illumination.

6V/20W halogen lamp or LED lamp, brightness adjustable.

With center adjustable field stop and aperture stop.

Camera adapter: 0.5X or 1X C-Mount.
Camera: Optional.
Power supply: AC100-240V, 50/60Hz.
