10X 20X Optical Metallurgical Microscope Integrated Trinocular Medical Lab Microscope

10X 20X Optical Metallurgical Microscope Integrated Trinocular Medical Lab Microscope
10X 20X Optical Metallurgical Microscope Integrated Trinocular Medical Lab Microscope

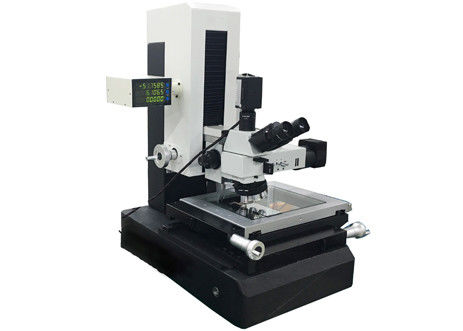

Large Image :  10X 20X Optical Metallurgical Microscope Integrated Trinocular Medical Lab Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

10X 20X Optical Metallurgical Microscope Integrated Trinocular Medical Lab Microscope

Description
Color: White Drawtube: Trinocular
Theory: Metallurgical Microscope Application: Machinery, Electronics, Plastics Etc.
Eyepiece: PL10X22mm Optical System: Infinity Chromatic Aberration Correction Optical System
Head: Hinged Trinocular Head Objective: Bright Field And Dark Field Infinity Metallurgical Objective
Nosepiece: 5 Holes Revolving Nosepiece Focusing: Coaxial Coarse And Fine Adjustment
Stage: 4" Three-layer Mechanical Mobile Platform
High Light:

10X Optical Metallurgical Microscope

,

20X Optical Metallurgical Microscope

,

Integrated Trinocular Medical Lab Microscope

Measuring 10X 20X Medical Lab Microscope Integrated Metallurgical Plastics Machinery

Measuring Microscope



M10106 Measuring Microscope Video Measuring Microscope is an integrated high-magnification, micron-industry-aimed measuring instruments. Combined with powerful microscopic inspection technology, it has been widely applied in many fields.



Features:



- Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.

- To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.

- To measure angle, for example, angle measurement for dials, templates, gauges, drilling template and those parts with complex structure.

- With PC and powerful metrology software, not only a microscope, but also a vision measuring system, can achieve professional measurement data management.



Item Description / Value
Optical System: Infinity chromatic aberration correction optical system
Head: Trinocular
Measuring Range: X-axis: 400mm minimum, Y-axis: 300mm minimum, Z-axis: 200 mm minimum
Minimum resolution: 0.5/0.1μm
Optical Part: Professional differential interference optical head
  Multilayer coating technology ensures clarity
  Light path and high power objective lens observation
  It is equipped with LED surface light and bottom light.
Transmission System: Precision Grinding of C3 ball screw
Camera: DS-Vil Color Camera Head 2 million pixel HD CCD
Objective lens: M Plan Apo HL 5X, 10X, 20X, 50X
Stage: 100x100mm Precise Stage
Light source system: 5W LED up and down light source
  Polarization system
  DIC



10X 20X Optical Metallurgical Microscope Integrated Trinocular Medical Lab Microscope 0
