Product Details:
|
| Color: | White | Drawtube: | Binocular |
|---|---|---|---|
| Theory: | Metallurgical Microscope | Application: | Machinery, Electronics, Plastics Etc. |
| Eyepiece: | PL10X22mm | Magnification: | 50X-1000X |
| Objective: | 5X, 10X, 50X, Long Working Distance Infinity Plan Objective | Nosepiece: | 4 Holes Revolving Nosepiece |
| Focusing: | Coaxial Coarse And Fine Adjustment | Illumination: | 5W LED Warm Lamp |
| High Light: | 50X Binocular Metallurgical Microscope,1000X Binocular Metallurgical Microscope,Humanized Butterfly Medical Lab Microscope |
||

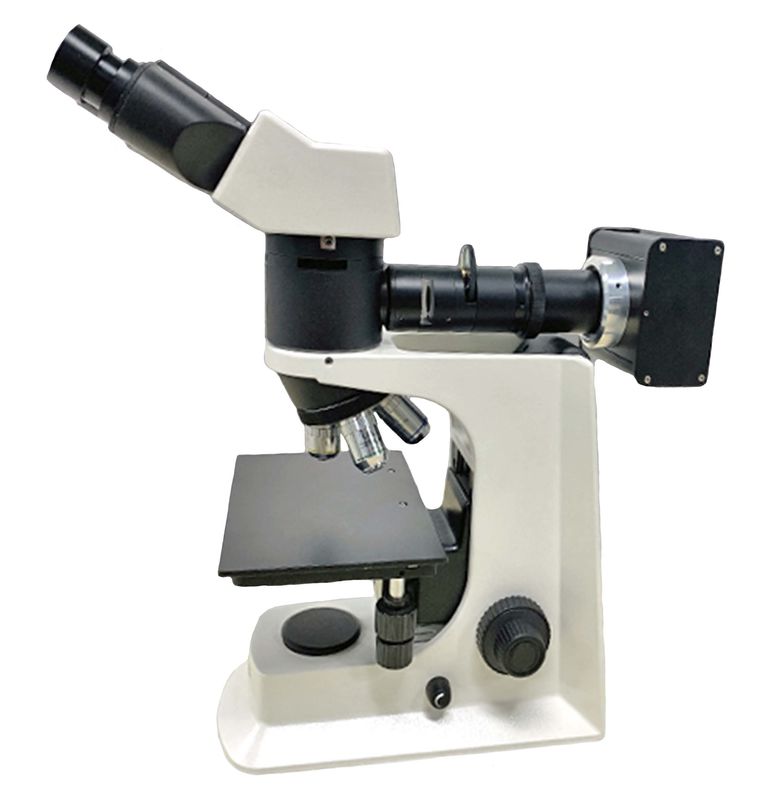

50X-1000X Binocular Metallurgical Microscope With Humanized Butterfly Binocular Head-Tubes
M10128 50X-1000X Binocular Metallurgical Microscope With Humanized Butterfly Binocular Head-Tubes. It’s widely used in all kinds of diversified applications, such as laboratories, research institutes, colleges and universities to do pathology, bacteriology observation, teaching and research, analysis and appraisal of materials in factories and laboratories.
Features:
| Items | Specification | M10128 |

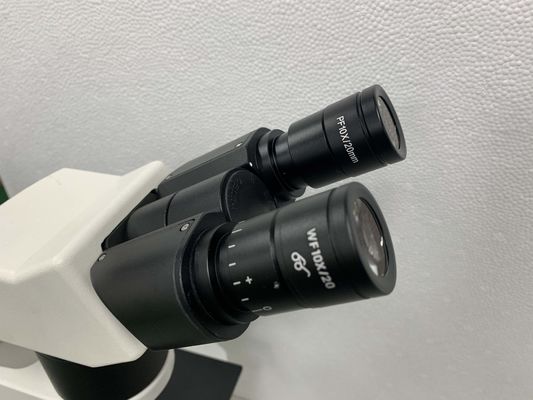

| Eyepiece | WF10X/20mm (High eyepoint) | ● |
| WF10X/20mm(H, adjustable Focus, Reticule 0.1mm) | ● | |
|
Long Working Distance Infinity Plan Objective (no cover glass) |
LPL 5×/0.13, W.D=16.04mm | ● |
| LPL 10×/0.25, W.D=18.48mm | ● | |
| LPL 20×/0.4, W.D=8.35mm | ○ | |
| LPL 50×/0.7, W.D=1.95mm | ● | |
| LPL 80×/0.8, W.D=0.85mm | ○ | |
| LMPlan FL 100×／0.85(Dry), W.D=3.00m | ○ | |
|
Swiveling Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm | ● |
|
Swiveling Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm, Light Distribution 20:80 | ○ |
| Nosepiece | Quadplex | ● |
| Mechanical Stage |
Stage Size: 200×140mm, Travel : 76mm×52mm Coaxial Coarse and Fine Focusing Knobs |
● |
| Reflection Illumination | 5WLED Warm lamp (Input voltage: 100V～240V) | ● |
| Filter | Five-hole filter unit(blue, green, amber, grey, empty) | ● |
| Polarizing Attachment | Analyzer/ Polarizer | ○ |
| C-mount | 1× | ○ |
| 0.5×(Focus Adjustable) | ○ | |
| Image System | USB2.0 3MP digital camera for trinocular head(measurement software) | ○ |
| USB2.0 5MP digital camera for trinocular head(measurement software) | ○ | |
| USB3.0 12MP digital camera for trinocular head(measurement software) | ○ | |
| 9.7” LCD touch screen tablet camera for trinocular head (measurement software) | ○ |
Note: ● means standard, ○ means optional

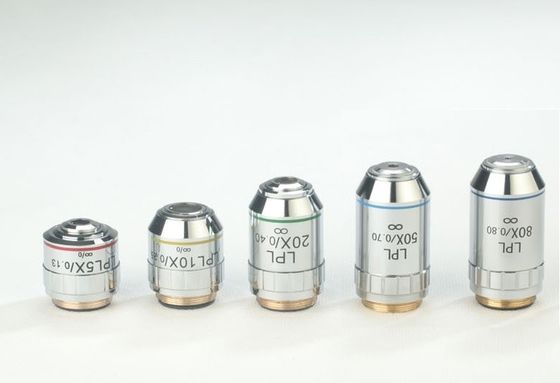

L.W.D Metallurgical Objective

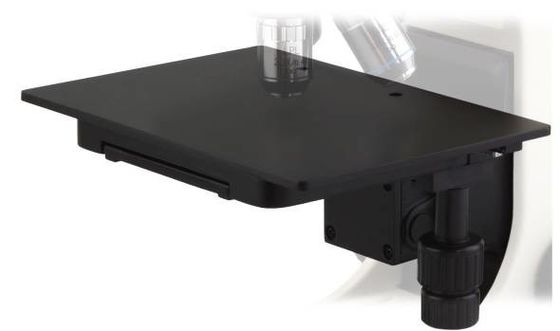

200mmX140mm Stage

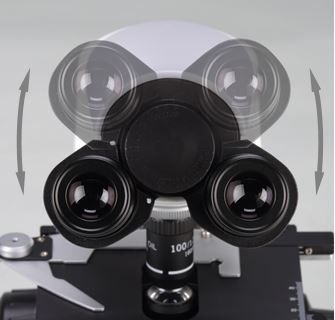

New designed and humanized butterfly binocular Head-Tubes which can be 360°rotated to raise observing
Height position than normal tubes to be more convenient for users with different height.
5V-12V low voltage input to ensure safe use, Power bank can be used for power supply, more convenient
for field inspection and power-short condition.

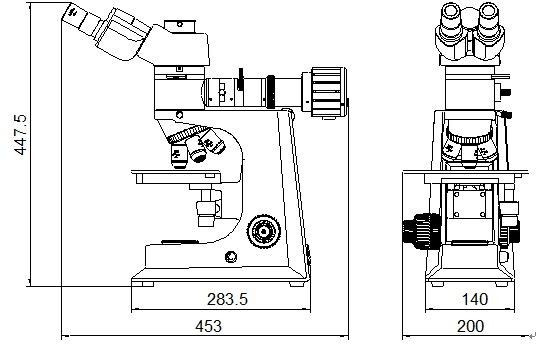

Metallurgical Microscope Size(mm)
MIT200 Packing Size: 580mm×380mm×290mm
Gross Weight: 10.5kgs
Net Weight: 8kgs
