50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field

Description
Color: White Drawtube: Binocular
Theory: Metallurgical Microscope Application: Machinery, Electronics, Plastics Etc.
Eyepiece: WF10X22mm Magnification: 50X-1000X
Objective: 5X, 10X, 20X, 50X, Long Working Distance Infinity Plan Objective Nosepiece: 4 Holes Revolving Nosepiece
Focusing: Coaxial Coarse And Fine Adjustment Illumination: 5W LED
High Light:

50X Optical Metallurgical Microscope

,

1000X Tinocular Optical Metallurgical Microscope

,

Dark Field binocular metallurgical microscope



For Both Bright Field & Dark Field Use 50X-1000X Tinocular Metallurgical Microscope



M10129 For Both Bright Field & Dark Field Use 50X-1000X Tinocular Metallurgical Microscope. Camera can be used for data storage and sharing. It’s an updated verion for applications of laboratories, research institutes, colleges and universities to do pathology, bacteriology observation, teaching and research, analysis and appraisal of materials in factories and laboratories.



Features:

  • Dark field objective,Make observation in dark & bright field.
  • Oversize view field eyepiece, view field up to 22mm for comfortable observation.

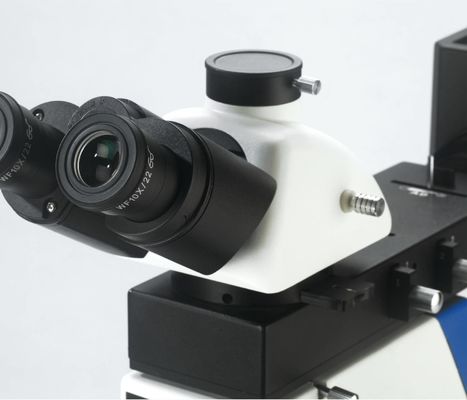

  • Trinocular head with dual transform.
  • Light distribution (both): 100: 0(100% for eyepiece), 80:20(80% for trinocular head and 20% for eyepiece).
  • Stage with fast lowering unit can increase 50mm for working distance, more convenient for observing big size sample.
  • Oversized three-layer mechanical stage provides more choice for samples.
Item Specification M10129A M10129B M10129C M10129D
Eyepiece WF10X/22mm (adjustable)
WF10X/22mm (adjustable , reticule 0.1mm)

Metallurgical LWD Infinity Plan

Objective

LMPlan FL 5×/0.15

(Semi Apochromatic Objective)

W.D=21.00mm

LMPlan FL 10×/0.30

(Semi Apochromatic Objective)

W.D=20.00mm

LMPlan FL 20×/0.40

(Semi Apochromatic Objective)

W.D=15.00mm

LMPlan FL 50×/0.55

(Semi Apochromatic Objective)

W.D=10.00mm
LPL80X/0.80 W.D=0.85mm

LMPlan FL 100×/0.85 (Dry)

(Semi Apochromatic Objective)

W.D=3.00mm
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field M PLAN 5×/0.13 BD W.D=7.30mm
M PLAN 10×/0.25 BD W.D.= 11.50mm
M PLAN 20×/0.40 BD W.D.= 5.60mm
M PLAN 50×/0.70 BD W.D.= 1.60mm
Seidentopf Trinocular Head

Inclined 30°,rotatable 360°, Interpupilary distance: 48mm~76mm, Light distribution (both):

100: 0 (100% for eyepiece)

80:20 (80% for trinocular head and 20% for eyepiece)

Nosepiece Quintuple
Quadplex(specially for bright /dark field objectives M26x1/36")
Mechanical Stage

Stage size: 200mm x 150mm, Travel range: 77mm x 52mm

Stage fast lowering unit: Up-Down moving range can be increased 50mm.


Stage size: 182mm x 140mm, Travel range: 77mm x 52mm
Polarizing Unit Polarizer /Analyzer
Condenser Abbe N.A.1.25, with Iris Diaphragm.

Coaxial Coarse and

Fine Focusing Unit

Coarse stroke: 25mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.

Reflecting

Illumination

5WLED lamp (Input voltage:100V~240V)
12V/50W Halogen lamp (Input voltage:100V~240V)

Transmitting

Illumination

5WLED lamp (Input voltage:100V~240V)
6V/30W Halogen lamp (Input voltage:100V~240V)
Filter Blue
Green/ Amber/ Grey
C-Mount 1 X /0.75X/0.5X( Focus Adjustable)
Note: ● means standard, ○ means optional

Dark field objective,Make observation in dark & bright field.
Oversize view field eyepiece, view field up to 22mm for comfortable observation.
Trinocular head with dual transform.

Light distribution (both): 100: 0(100% for eyepiece)80:20(80% for trinocular head and 20% for eyepiece)



50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 0





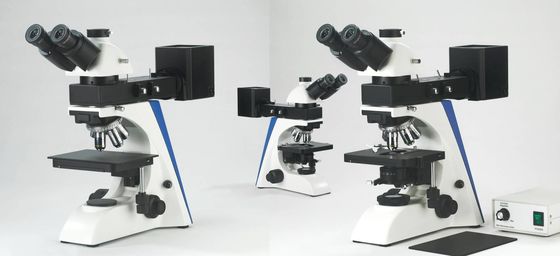

M10129A, M10129B                                                                       M10129C, M10129D

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 1





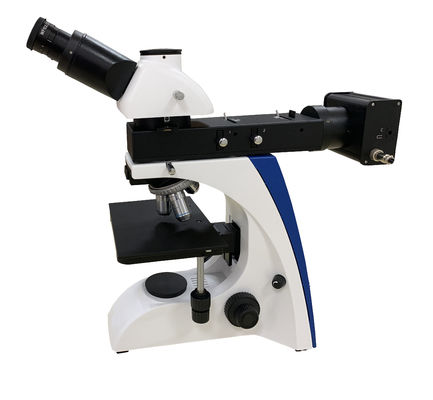

Stage with fast lowering unit can increase 50mm for working distance, more convenient for observing big size sample.

Oversized three-layer mechanical stage provides more choice for samples.

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 2

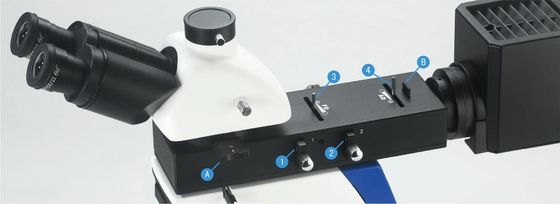

1. Polarizer 2.Filter switch handle 3. Field diaphragm 4.Aperture diaphragm

A. Analyzer B. Ground glass slider

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 3



Objective specification: ( "●" means standard, "○" means optional)

  Objective N.A.

Working Distance

(mm)

M10129A/

M10129C

M10129B/

M10129D

Metallurgical LWD Infinity

Plan Objectives

LMPlan FL 5×

(Semi Apochromatic Objective)

0.15 21.00

LMPlan FL 10×

(Semi Apochromatic Objective)

0.30 20.00

LMPlan FL 20×

(Semi Apochromatic Objective)

0.40 15.00

LMPlan FL 50×

(Semi Apochromatic Objective)

0.55 10.00
LPL 80× 0.80 0.85

LMPlan 100×(Dry)

(Semi Apochromatic Objective)

0.85 3.00

Metallurgical LWD Infinity

Plan Objectives for Bright/Dark Field

M PLAN 5× BD 0.13 7.30
M PLAN 10× BD 0.25 11.50
M PLAN 20× BD 0.40 5.60
M PLAN 50× BD 0.70 1.60

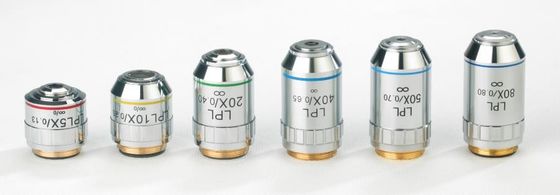

Metallurgical LWD Infinity Plan Objectives

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 4



Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 5

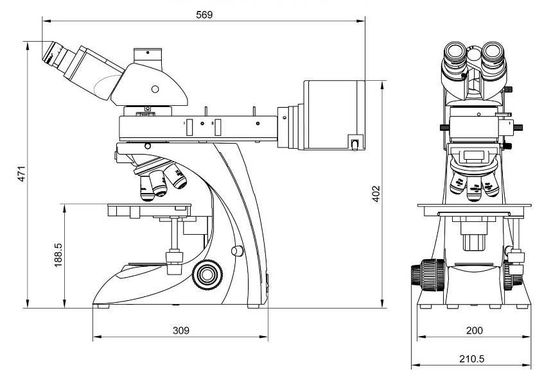

M10129A, M10129B Metallurgical Microscope Size(mm)

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 6



M10129C, M10129D Metallurgical Microscope Size(mm)

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 7



M10129 Metallurgical Microscope General Layout Diagram

50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 8



Packing Size: 520mm×470mm×430mm

Gross Weight: 16kgs

Net Weight: 12kgs



50X 1000X Binocular Optical Metallurgical Microscope Tinocular Bright Dark Field 9
