Product Details:
|
| Color: | White | Drawtube: | Binocular |
|---|---|---|---|
| Theory: | Metallurgical Microscope | Application: | Machinery, Electronics, Plastics Etc. |
| Eyepiece: | WF10X/20mm | Magnification: | 50X-1000X |
| Objective: | 5X, 10X, 20X, 50X | Nosepiece: | 4 Holes Nosepiece |
| Focusing: | Coaxial Coarse And Fine Adjustment | Illumination: | 5W LED |
| Highlight: | 50X-1000X Inverted Optical Microscope,Metallurgical Inverted Optical Microscope,50X bright field microscope |
||
Inverted 50X-1000X Metallurgical Microscope Combinated With Bright field, Polarizing Observation
M13115 Inverted 50X-1000X Metallurgical Microscope Combinated With Bright field, Polarizing Observation. This series inverted microscope are widely used in metal, mineral, electronic industry combinated with bright field, polarizing observation.
Features:
| Item | Specification | M13116A | M13116B | |
| Eyepiece | WF10×／22mm(adjustable) | ● | ● | |
| WF10×／22mm(adjustable,reticule 0.1mm) | ● | ● | ||
|
Metallurgical LWD Infinity Plan Objectives |
LMPlan FL 5×/0.15 (Semi Apochromatic Objective) |
W.D.=21.00mm | ● | ○ |
|
LMPlan FL 10× /0.30 (Semi Apochromatic Objective) |
W.D.= 20.00mm | ● | ○ | |
|
LMPlan FL 20× /0.40 (Semi Apochromatic Objective) |
W.D.= 15.00mm | ● | ○ | |
|
LMPlan FL 50× /0.55 (Semi Apochromatic Objective) |
W.D.= 10.00mm | ● | ○ | |
| LPL 80×／0.80 | W.D.= 0.85mm | ○ | ○ | |
|
LMPlan FL 100×0.85 (Dry) (Semi Apochromatic Objective) |
W.D.= 3.00mm | ○ | ○ | |
|
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field |
M PLAN 5×／0.13 BD | W.D=7.30mm | ● | |
| M PLAN 10×／0.25 BD | W.D.= 11.5mm | ● | ||
| M PLAN 20×／0.40 BD | W.D.= 5.60mm | ● | ||
| M PLAN 50×／0.70 BD | W.D.= 1.60mm | ● | ||
| Seidentopf Trinocular Head |
Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0(100% for eyepiece) 80:20(80% for trinocular head, and 20% for eyepiece) |
● | ● | |
| Nosepiece | Quintuple | ● | ||
| Quadplex(specially for bright /dark field objectives) | ● | |||
| Mechanical Stage | Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm | ● | ● | |
| Coaxial Coarse and Fine Focusing unit |
Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm. |
● | ● | |
| Polarizing Unit | Polarizer /Analyzer | ● | ● | |
| Illumination | 12V/50W Halogen(Input voltage:100V～240V) | ● | ● | |
| 5WLED lamp (Input voltage:100V～240V) | ○ | ○ | ||
| Filter | Blue | ● | ● | |
| Green/ Amber/ Grey | ○ | ○ | ||
| C-mount | 1×/0.75×/0.5×C-Mount (focus adjustable) | ○ | ○ | |
| Adaptor for Digital Photograph | Use for CANON／NIKON／OLYMPUS etc. | ○ | ○ | |
Note: ● means standard, ○ means optional
Combination with bight field, polarizing observation etc. Widely used in metal, mineral, electronic industry

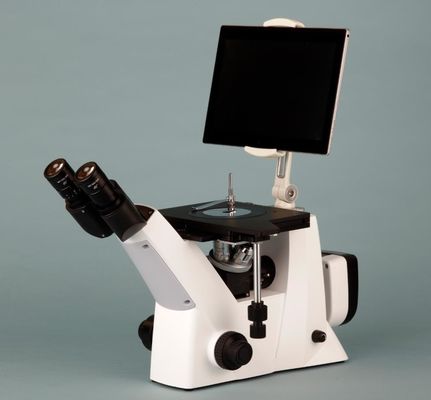

M13115 With HDMI Camera and 10.1” HD Screen
M13115 with HDMI Camera, Users Can Use Their Own Screens

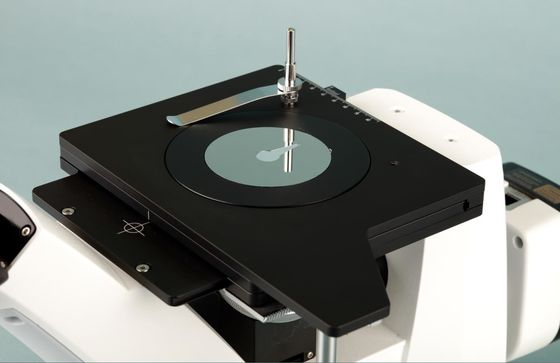

Large Size Three-layer Working Stage, More Choice for Samples
Analyzer & Polarizer for simple polarizing observation
New Designed and Humanized Butterfly Binocular Head-Tubes Which Can Be 360°Rotated To Raise Observing
Height Position Than Normal Tubes To Be More Convenient For Users With Different Height.
5V-12V Low Voltage Input To Ensure Safe Use. Power Bank Can Be Used for Power Supply, More Convenient for Field Inspection and
Power-short Condition
Built In LED Illumination System Which Can Be Powered with Power Bank, Laptop and Vehicle Power Supply Ensure Being Used Anywhere and Any Condition.

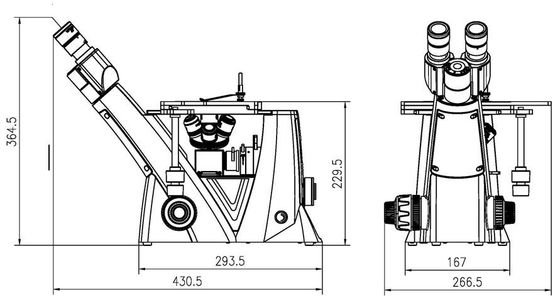

M13115 Inverted Metallurgical Microscope Size (mm)
M13115 Inverted Metallurgical Microscope General Layout Diagram
Packing Size: 500mm×425mm×305mm
Gross Weight: 9.0kgs
Net Weight: 7.0kgs
