Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14110
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

60X 800X Optical Polarizing Microscope Binocular Metallurgical Materials Science

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Polarizing Metallurgical Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-800X
Eyepiece: WF10X/20mm Focusing: Coaxial Coarse & Fine
Nosepiece: 5-Positions Objective: 4X, 10X, 40X, 60X
High Light:

60X Optical Polarizing Microscope

,

40X Optical Polarizing Microscope

,

800X Binocular Metallurgical Microscope



40X-800X Binocular Trinocular Metallurgical Polarizing Microscope for materials science applications

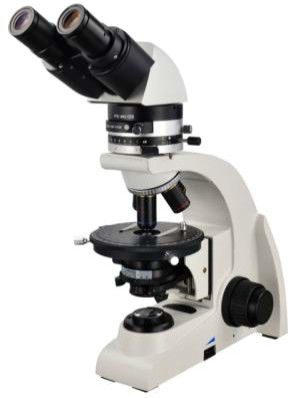

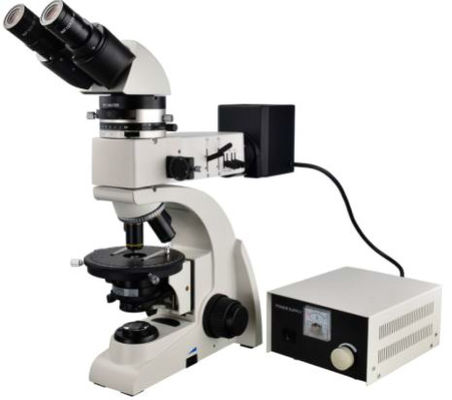

M14110 40X-800X Binocular Trinocular Metallurgical Polarizing Microscope for materials science applications. M14110 Polarizing Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. M14110 is equipped with rotatable stages and stain-free objectives for polarized light observation.



Features:

  • Diversified binocular and trinocular view heads to choose.
  • Illumination system includes transmitted light and reflected light.
  • Rotatable stages.
  • Stain-free objectives for polarized light observation



Item Specification M14110A M14110B M14110C M14110D M14110E M14110F
Observation Tube: Binocular head inclined at 30°
Trinocular head inclined at 30°
Interpupillary distance: From 50-75mm
Eyepiece: WF10X/20mm eyepieces, WF10X/20mm reticule eyepiece ●● ●● ●● ●● ●● ●●
Objectives:

stain-free objectives

4X, 10X, 40X(spring), 60X(spring)



Plan metallurgical objectives

5X 10X, 20X, 50X(spring)


Stage: rotatable stage φ 140mm
Focusing: Coaxial focusing knob, fine focusing is graduated in increment of 1um
Condenser: Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360°- swing out - rotatable polarizer
Illumination: Transmitted light 6V 20W
Reflected light 12V 50W


Reflected light 12V 50W

Transmitted light 6V 20W


Power supply: 100-240V
Standard accessories: Dust cover, fuse, power cord
Optional accessories φ160mm rotatable stage
80X plan metallurgical objective
3W LED for transmitted light
5W LED for reflected light
C-mount adapter
digital camera adapter
3M/5M/10M/16M/HD camera

Note: ● means standard, ○ means optional
