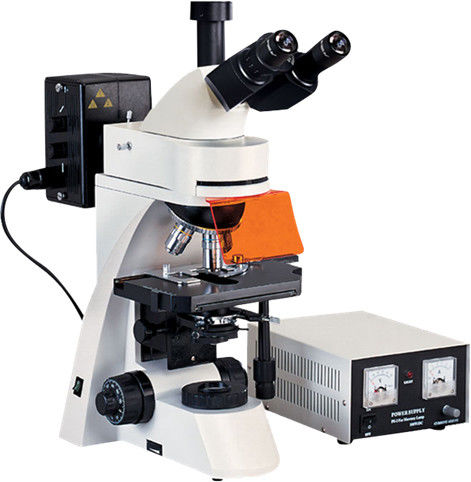

Trinocular Epi Fluorescence Microscope 1600X WF10X 22mm Phase Contrast Microscope

Trinocular Epi Fluorescence Microscope 1600X WF10X 22mm Phase Contrast Microscope
Trinocular Epi Fluorescence Microscope 1600X WF10X 22mm Phase Contrast Microscope

Large Image :  Trinocular Epi Fluorescence Microscope 1600X WF10X 22mm Phase Contrast Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15111
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Epi Fluorescence Microscope 1600X WF10X 22mm Phase Contrast Microscope

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Fluorescence Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Infinity Achromatic Optical System Magnification: 100X-1000X
Eyepiece: WF10X/22mm Objective: 10X/20X/40X/100X
Nosepiece: Quadruple Condenser: Abbe Condenser N.A.1.25
Stage: Double Layer Mechanical Stage Camera: Optional
High Light:

Trinocular epi fluorescence microscope

,

1600X epi fluorescence microscope

,

WF10X 22mm phase contrast microscope



Trinocular EPI-Fluorescence Microscope 1000X with Multi Optical Correction Phase Contrast Objectives



M15111 EPI- fluorescent microscope is modular designed microscope based on the requirements of ergonomics. It’s widely used for biological pharmaceutical, medical inspection, disease prevention and other applications by bright field observation.



Features:

- Perfectly meet the requirements of ergonomics.

- With standard B and G filters, it can be used in fluorescence and bright field observation.

- Powerful on phase contrast observation by using infinity plan optical correction phase contrast objectives 10X/0.25 PHP, 20X/0.40 PHP, 40X/0.65 PHP, 100X/1.25 PHP.



Item Description / Value M15111
View tube: Infinity view tube. Trinocular 30° inclined. Interpupillary distance From 50 to 75 mm. Dioptric shift on one tube.
Optical system: Infinity achromatic optical system, all lenses are multi fully coated optical galss.
Observation: Fluorescence, bright field
Fluorescence filter:

Fluorescence filter B group(Blue): excitation wavelength 450-490nm

Fluorescence filter G group(Green): excitation wavelength 495-555nm

Fluorescence kits: Mercury lamp: 100W/DC, with power controller.
LED illuminator.
Illumination: Transmitted Illuminator: Halogen lamp
Eyepiece: Wide-field WF10/22mm.
Nosepiece: Quadruple
Objective:

Infinity Plan Optical correction objective(for work with cover glass and without cover glass):

PL10X/0.25, PL20X/0.40, PL40X/0.65, PL100X/1.25(spring, oil).

Infinity Plan Optical correction Phase contrst objective:

10X/0.25 PHP, 20X/0.40 PHP, 40X/0.65 PHP, 100X/1.25 PHP

Stage:

Double layer mechanical stage with clicks and scales.

Can holder 2 slider.

Stage size: 210× 140mm, moving range: 75mm ×50mm.

XY movement accurancy: 0.1mm.

Coaxial control mechanism with right handles.

Focusing

mechanism:

Coaxial focus mechanism with knobs on both sides.

Tightness and height limitation of coarse regulation are

adjustable.

Fine adjustment accuracy: 0.002mm.

Coarse movement: 28mm.

Condenser: Abbe condenser N.A.1.25 can move up and down.
Camera adapter: 0.5X or 1X C-Mount.
Camera:

6.3MP digital camera and software for win7/10.

Software can capture image, record video.

With Focus stacking and image stitching.

Accessories: Dust cover, manual, all necessnary cables.

Note: ● means standard, ○ means optional
