WF10X/20mm Eyepiece Optical Metallurgical Microscope Binocular Trinocular 50X-1000X

WF10X/20mm Eyepiece Optical Metallurgical Microscope Binocular Trinocular 50X-1000X
WF10X/20mm Eyepiece Optical Metallurgical Microscope Binocular Trinocular 50X-1000X

Large Image :  WF10X/20mm Eyepiece Optical Metallurgical Microscope Binocular Trinocular 50X-1000X

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10131
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

WF10X/20mm Eyepiece Optical Metallurgical Microscope Binocular Trinocular 50X-1000X

Description
Color: White Customization: OEM, ODM
Drawtube: Trinocular Theory: Metallurgical Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 100X~1000X Eyepiece: WF10X/20mm
Focusing: Coarse Focusing Nosepiece: Quadruple Nosepiece
Objective: 10X, 20X, 50X, 80X Product Name: Eyepiece Binocular Tinocular Metallurgical Microscope
High Light:

WF10X/20mm Optical Metallurgical Microscope

,

Binocular Optical Metallurgical Microscope

,

Trinocular inverted metallurgical microscope



WF10X/20mm Eyepiece Binocular Tinocular Metallurgical Microscope 50X-1000X with Multi-types To Choose



M10131 WF10X/20mm EyepieceBinocular Tinocular Metallurgical Microscope 50X-1000X with Multi-types To Choose. The M10131 Series is ideal for measuring needs, quality control applications, inspection in several fields, including manufacturing processes, soldering and material science. With field of view of 20 mm eyepieces, 12V 50W lighting source as reflected illumination, Objectives are IOS W-PLAN MET and NCG (no cover glass), being purposely designed for microscopy use with no a cover slip. Reflected light microscopy is the method to observe specimens which remain opaque even when ground to a thickness of few microns. The range of specimens falling into this category contains metals, ores, ceramics, polymers, semiconductors (unprocessed silicon, wafers, and integrated circuits), coal, plastics, paint, paper, wood, leather, and a wide variety of specific materials.



Features:

  • 12V 50W lighting source as reflected illumination, LED is available.
  • Eyepiece field of view is upto 20mm.
  • Camera could be introduced to upgrade easily.
  • Reflected light microscopy easy to observe specimens which remain opaque even when ground to a thickness of few microns.



ItemSpecificationM10131AM10131BM10131CM10131D
Observation Tube:Binocular head inclined at 30°
Trinocular head inclined at 30°
Interpupillary distance:From 50-75mm
Eyepiece:WF10X/20mm eyepieces, WF10X/20mm reticule eyepiece●●●●●●●●
Objectives:Plan metallurgical objectives 10X, 20X, 50X(spring), 80X(spring)
Stage:

Mechanical stage (reflected type)

with size 156x138mm, X-Y travel is

76x54mm



Mechanical stage (transmitted

type) with size 156x138mm, X-Y

travel is 76x54mm


Nosepiece:Quadruple Nosepiece
Focusing:Coaxial focusing knob, fine focusing is graduated in increment of 1um
Condenser:N.A. 1.25Abbe condenser with iris diaphragm
Illumination:Reflected light 12V 50W

Reflected light 12V 50W

Transmitted light 6V 20W


Power supply:100-240V
Standard accessories:Dust cover, fuse, power cord
Optional accessoriesWF10X/22mm eyepiece○○○○○○○○
5X plan metallurgical objective
100X plan metallurgical objective (dry)
3W LED for transmitted light
5W LED for reflected light
C-mount adapter
digital camera adapter
digital camera eyepiece
 3M/5M/10M/16M/HD camera

Note: ● means standard, ○ means optional

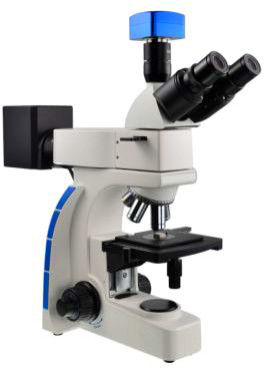

WF10X/20mm Eyepiece Optical Metallurgical Microscope Binocular Trinocular 50X-1000X 0
