3D Full Auto Scanning Measurement System Industrial Design Microscope

Description
Color: White Customization: OEM, ODM
Size: 350X450X690mm Voltage: 110-220VAC,60/50Hz
Power: 80W Working Temp.: 10°~38°C
Working Humidity: 10%~90%(No Condensation) Repeatability: ≤10um, Upgradeable To <3um
Weight: 36kg Objective: Infinity LWD Metallurgical Semi-APO 5x,10x, 20x, 50x,100x
LED Life Time: 40000 Hours View Method: Reflect LED



3D Full Auto Scanning Measurement System Industrial Design Microscope

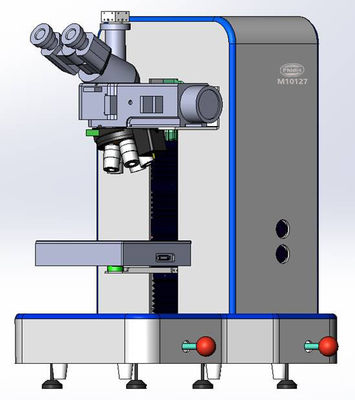

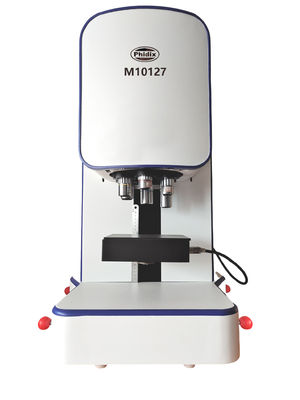

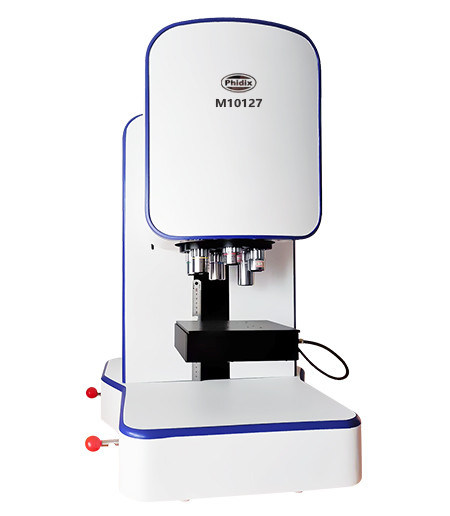

M10127 is a microscope system that integrates observation+measurement+recording. It integrates stereo microscope, metallurgical microscope, 3D measuring microscope into one,through leading automatic lighting observation,motorized platform with large moving range 300*300mm,to fully functional user interface, in a real sense,from macro-scale imaging to micro-scale detailed measurement.
Features: Take optical focusing as the measuring principle,and adopt high-precision optical detection method for precise dimension measurement. Not only can the target image be aligned, but also the surface state of the measurement point can be observed, and the height,length,diameter,circumference,etc. Can be measured. High magnification,suitable for the measurement of precision products,and can also be used as a high-power microscope.

3D Full Auto Scanning Measurement System
The new M10127 Research-grade Metallurgical Microscope has upgraded to XYZ motorized working stage model,combined with the powerful 2D/3D software,which integrates a number of firsts.From appearance to performance,it closely follows the international leading design trend.We will continue to provide customers with complete 3D industrial inspection solutions.



M10127 Industrial Automatic 3D Microscope


•Motorized Industry Measuring System With Computer&Software
•Motorized Nosepiece 6 Holes With Infinity Plan LWD Metallurgical 5x10x20x50x100x
•X/Y/Z Motorized Working Stage Moving Range 50x50/200mm Resolution 15um
•Marco Camera Real Time Electrical Map To Overview&Guide To Any Interesting Point
•3D Advanced Version Software Include Full Auto 2D&3D Image Stitching&Measuring Function
 3D Full Auto Scanning Measurement System Industrial Design Microscope 0

3D Full Auto Scanning Measurement System Industrial Design Microscope 1

3D Full Auto Scanning Measurement System Industrial Design Microscope 2


ItemsSpecificationM10127

Main Body


Nosepiece: 6 Holes Coding Motorized Nosepiece
Objective: Infinity LWD Metallurgical Semi-APO 5x,10x, 20x, 50x,100x
LED Life Time: 40000 Hours
View Method: Reflect LED
View Method: Polarizing
View Method: DIC

XYZ Motorized Stage


Repeatability: 15um
Repeatability: 3um
Moving Speed: 12mm/sec(max)
Moving Range: 50x50x200mm
Stage Size: 150x170mm
Stage Load: 10kg
Z Motorized ControlAuto Focus Speed 0.3 Second(Fastest),Normally 1-3 Seconds
Z Resolution: 0.1um
Moving Speed: 20mm/sec(max)
Moving Range: 20mm
Micro Camera9MPA Digital Camera: 9.0M USB3.0 GS Shutter Digital Camera,1 CMOS, C-Mount, FPS 34@4096x2160, 60@2048x1080, G Sensitivity Dark Signal 1146m with 1/30s
Round Stage360° Rotatable, 30°Incline Angle Adjustable
Marco CameraView Field Up To 70mm*90mm, Resolution 0.2mm
Computer

Dell Xeon W-2265 12 Core 3.5GHz, 128G+1TNVMe 4T, RTX4000-8G, 27"4K,
Pre-Installed Software. Standard Computer For 2DF, 3D Version Software

Dell i5 64G 256G+1T, 2G Graphic, 27"4K, Pre-Installed Software.
Standard Computer For 2D, 2DB Version Software

Software3D, Add 3D Scan, For XYZ Stage+Computer
2D, Plane Scan,For XY or XYZ Stage+Computer
2DF, Add Up/Down Fusion Scan, For XYZ Stage+Computer
Image FormatOutput: JPEG,TIFF

Motorized
Working Stage

XYZ Motorized Working Stage,2-Phase Stepping Motor, High Precision Module, Aluminum Alloy Material,Surface Anodized,Anti-Corrosion And Scratch-Resistant

Note: ● means standard, ○ means optional





Full Auto Microscope Scanning Software
3D Full Auto Scanning Measurement System Industrial Design Microscope 3           3D Full Auto Scanning Measurement System Industrial Design Microscope 4
                                   2D                                                                                     2DB
                         X/Y Motorized                                                                    X/Y/Z Motorized
                        2D Plane Scan                                                                     2D Bevel Scan
3D Full Auto Scanning Measurement System Industrial Design Microscope 5          3D Full Auto Scanning Measurement System Industrial Design Microscope 6
                                2DF                                                                                   3D
                     X/Y/Z Motorized                                                                  X/Y/Z Motorized
                     2D Fusion Scan                                                                        3D Scan
