M10132 Industrial Automatic 3D Microscope Gantry Industrial Design

Description
Nosepiece: 6 Holes Coding Motorized Nosepiece Z Resolution: 0.1um
Size: 1050X450X690mm Voltage: 110-220VAC,60/50Hz
Power: 80W Working Temp.: 10°~38°C
Working Humidity: 10%~90%(No Condensation) Moving Range: 100mm
Weight: 86kg Repeatability: 15um
LED Life Time: 40000 Hours View Method: Transmit/Reflect LED



M10132 Industrial Automatic 3D Microscope Gantry Industrial Design



M10132 is a microscope system that integrates observation+measurement+recording. It integrates stereo microscope,metallurgical microscope,3D measuring microscope into one, through leading automatic lighting observation, motorized platform with large moving range 300x300mm,to fully functional user interface,in a real sense,from macro-scale imaging to micro-scale detailed measurement.

Features:Take optical focusing as the measuring principle,and adopt high-precision optical detection method for precise dimension measurement. Not only can the target image be aligned,but also the surface state of the measurement point can be observed,and the height,length,diameter,circumference,etc.can be measured.High magnification,suitable for the

Measurement of precision products,and can also be used as a high-power microscope.



3D Full Auto Scanning Measurement System

The new M10132 Research-grade Metallurgical Microscope has upgraded to XYZ motorized working stage model,combined with the powerful 2D/3D software,which integrates a number of firsts.From appearance to performance,it closely follows the international leading design trend.We will continue to provide customers with complete 3D industrial inspection solutions.



M10132 Industrial Automatic 3D Microscope



•Gantry Type Motorized Industry Microscope Measuring System With Computer&Software

•Motorized Nosepiece 6 Holes With Infinity Plan LWD Metallurgical 5x10x20x50x100x

•X/Y/Z Motorized Working Stage Moving Range 300x300/20mmResolution15um

•Marco Camera Real Time Electrical Map To Overview&Guide To Any Interesting Point

•3D Advanced Version Software Include Full Auto 2D&3D Image Stitching&Measuring Function

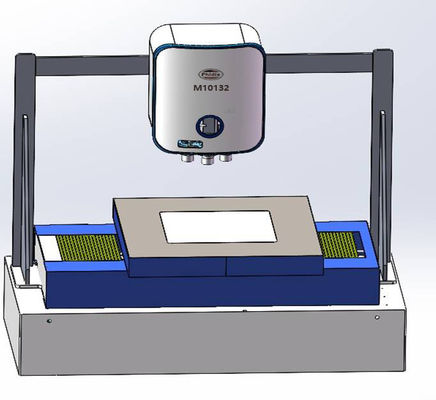

M10132 Industrial Automatic 3D Microscope Gantry Industrial Design 0

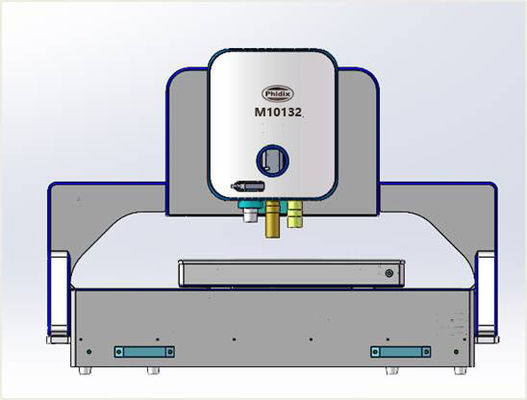

M10132 Industrial Automatic 3D Microscope Gantry Industrial Design 1


Items Specification M10127

Main Body



Nosepiece: 6 Holes Coding Motorized Nosepiece
Objective: Infinity LWD Semi-APO Metallurgical 2x,5x,10x,20x,50x,100x
LED Life Time: 40000 Hours
View Method: Transmit/Reflect LED
View Method: Polarizing
View Method: DIC

XYZ Motorized Stage



Repeatability: 15um
Repeatability: 3um
Moving Speed: 12mm/sec(max)
Moving Range: 300x300mm
Stage Size: 550X570X65mm
Stage Load: 10kg
Z Motorized Control Auto Focus Speed 0.3 Second(Fastest),Normally 1-3 Seconds
Z Resolution: 0.1um
Moving Speed: 20mm/sec(max)
Moving Range: 100mm
Micro Camera Digital Camera: 9.0M USB3.0 GS Shutter Digital Camera,1’’ CMOS, FPS 15@5440x3648, 50@2736x1824, 60@1824x1216
Round Stage 360° Rotatable, 30°Incline Angle Adjustable
Marco Camera View Field Up To 70mm*90mm, Resolution 0.2mm
Computer

Dell Xeon W-2265 12 Core 3.5GHz, 128G+1TNVMe 4T, RTX4000-8G, 27"4K,

Pre-Installed Software. Standard Computer For 2DF, 3D Version Software

Dell i5 64G 256G+1T, 2G Graphic, 27"4K, Pre-Installed Software.

Standard Computer For 2D, 2DB Version Software

Software 3D, Add 3D Scan, For XYZ Stage+Computer
2D, Plane Scan,For XY or XYZ Stage+Computer
2DF, Add Up/Down Fusion Scan, For XYZ Stage+Computer
Image Format Output: JPEG,TIFF

Motorized

Working Stage

XYZ Motorized Working Stage,2-Phase Stepping Motor, High Precision Module, Aluminum Alloy Material,Surface Anodized,Anti-Corrosion And Scratch-Resistant

Note: ● means standard, ○ means optional





Full Auto Microscope Scanning Software

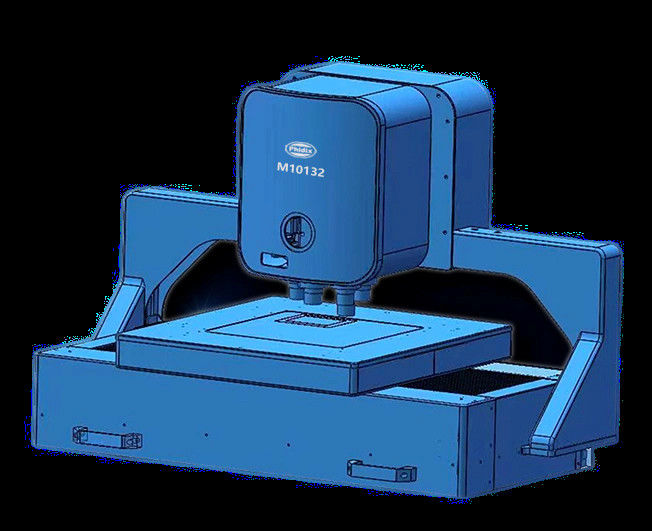

M10132 Industrial Automatic 3D Microscope Gantry Industrial Design 2           M10132 Industrial Automatic 3D Microscope Gantry Industrial Design 3
                                   2D                                                                                     2DB
                         X/Y Motorized                                                                    X/Y/Z Motorized
                        2D Plane Scan                                                                     2D Bevel Scan
M10132 Industrial Automatic 3D Microscope Gantry Industrial Design 4          M10132 Industrial Automatic 3D Microscope Gantry Industrial Design 5
                                2DF                                                                                   3D
                     X/Y/Z Motorized                                                                  X/Y/Z Motorized
                     2D Fusion Scan                                                                        3D Scan
