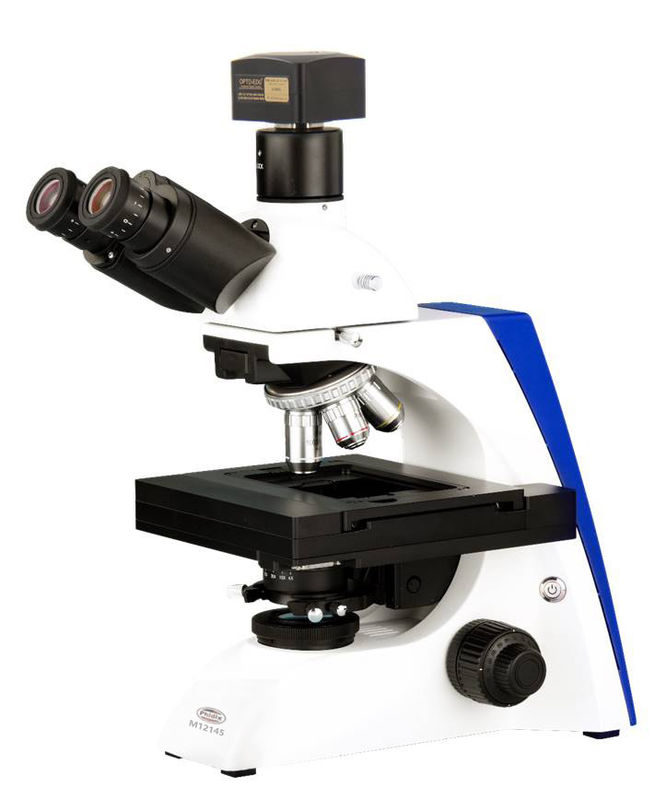

3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized

3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized
3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized

Large Image :  3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12145
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized

Description
Optical System: BF Bright Field, Semi-APO, Semi Apochromatic Nosepiece: Quintuple, Backward, With Inner Click Stop
Condenser: Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm Filter: Dia.45mm, Blue
Adapter: 0.5x C-Mount, For 1/2"CCD, Focus Adjustable Eyepiece: WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable
Objective: Infinity Plan Semi-APO Fluorescent Objective Focusing: Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm



3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized



The new M12145 Research-grade Biological Microscope has upgraded to XY motorized working stage model, combined with the powerful Maxcope 2D/3D software, which integrates a number of firsts. From appearance to performance, it closely follows the international leading

design trend. MAXCOPE will continue to provide customers with complete 3D industrial inspection solutions.



Motorized Biological Microscope, BF, XYZ Motorized

● Infinity Plan Optical System With Semi-APO FL4x10x20x40x100x Objectives

● X/Y/Z Motorized Stage Large Moving Range 100x100mm Resolution 0.05um

● Full Auto 2D Scan Image Stitching With Quick & Precise Mode

● Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching & Measuring

● USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed Software





● All-in-One Slide Scan Fully Automatic Scan Function With Computer & Software

● Motorized Nosepiece 6 Holes With Infinity Plan 2x10x20x40x60x100x Objectives (1606)

● X/Y/Z Motorized Working Stage Moving Range 100×100/200mm Resolution 0.2um

● Marco Camera Real Time Electrical Map To Overview & Guide To Any Interesting Point

● 2D Standard Image Stiching Software With Full Range Measuring Function



3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized 0

Items

M12145 3D Full Auto SDF Biological Microscope

M15112 3D Full Auto SDF Fluorescent Microscope

M12145 M15112

Optical System



Infinity Optical System, BF Bright Field
Semi-APO, Semi Apochromatic
DF, Dark Field
PL, Polarizing
PH, Phase Contrast
FL, Fluorescent
Nosepiece Quintuple, Backward, With Inner Click Stop
Head

Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupillary

Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece

Tube Dia.30mm

Adapter 0.5x C-Mount, For 1/2"CCD, Focus Adjustable
0.75x C-Mount, For 1/2"CCD, Focus Adjustable
1.0x C-Mount, For 1"CCD, Focus Adjustable
Digital Camera

9.0M USB3.0 GS Shutter Digital Camera, 1“ CMOS, C-Mount, FPS

34@4096x2160, 60@2048x1080, G Sensitivity Dark Signal 1146m

with 1/30s

Eyepiece WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable
WF15x/16mm,Dia.30mm, High Eyepoint, Diopter Adjustable
WF20x/12mm,Dia.30mm, High Eyepoint, Diopter Adjustable

WF10x/22mm, With Micrometer X-0.1mm*180 Div/ Y-Single Line,

Diopter Adjustable

Infinity Plan Semi-APO Fluorescent Objective UPlanFLN 4x, N.A.0.16,W.D.=17.151mm
UPlanFLN 10x, N.A.0.30,W.D.=7.68mm
UPlanFLN 20x, N.A.0.50,W.D.=1.96mm
UPlanFLN 40x, N.A.0.75,W.D.=0.78mm
UPlanFLN 100x, N.A.1.30,W.D.=0.15mm
Filter Dia.45mm, Blue
Dia.45mm, Green
Dia.45mm, Yellow
Focusing

Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range:

22mm, Fine Focusing Div. 0.002mm

Condenser Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm
Illumination

5W LED Koehler Illumination, Field Diaphragm

Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-

240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

ECO



ECO, Auto Power Off System.

Power Off Automatically Upon User Leaving 10 Minutes,

Power On Automatically Upon User Approaching Detected,

This Function Can Be Shut Down Manually

Dark Field Dark Field Condenser, Dry N.A.0.83-0.91, For 4x10x40x Objective
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective
Polarizing Analyzer + Polarizer Set
Phase Contrast

Turret Phase Contrast Attachment

Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase

Contrast Condenser 5-Holes, Telescope 11x, Green Filter

Fluorescence

A5F.2602-4:

B,G,U,UV China Fluorescent Set

6 Holes Disc Fluorescent Unit

5W LED Lamp House

5W LED Power Box

Ultraviolet Protection Barrier

Note: ● means standard, ○ means optional





Full Auto Microscope Scanning Software
3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized 1           3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized 2
                                   2D                                                                                     2DB
                         X/Y Motorized                                                                    X/Y/Z Motorized
                        2D Plane Scan                                                                     2D Bevel Scan
3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized 3          3D Full Auto Biological Microscope Motorized Biological Microscope, BF, XYZ Motorized 4
                                2DF                                                                                   3D
                     X/Y/Z Motorized                                                                  X/Y/Z Motorized
                     2D Fusion Scan                                                                        3D Scan
