Product Details:
|
| Optical System: | BF Bright Field, Semi-APO, Semi Apochromatic | Camera: | USB3.0 CMOS |
|---|---|---|---|
| Stage: | XYZ Motorized Stage | Optional Function: | BF+DF+PL+PH+FL |
| Input Wide Voltage: | 100V-240V | Output: | 5V1A |
| Objective: | Infinity Plan Semi-APO Fluorescent Objective | Focusing: | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm |

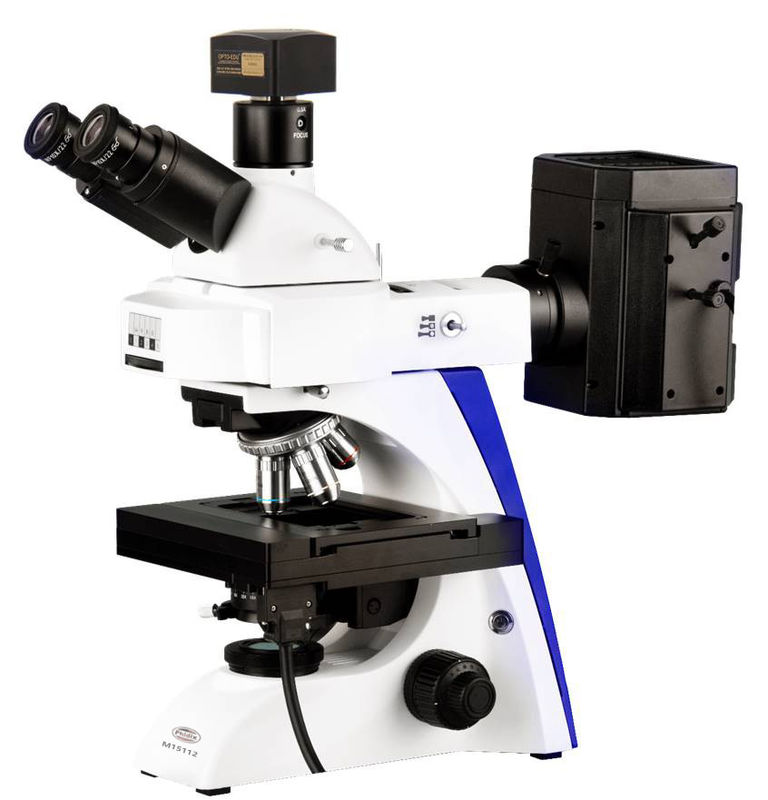

3D Full Auto Fluorescent Microscope Semi-APO, BF+DF+PL+PH+FL
The new M15112 Research-grade Biological Microscope has upgraded to XY motorized working stage model, combined with the powerful Maxcope 2D/3D software, which integrates a number of firsts. From appearance to performance, it closely follows the international leading
design trend. MAXCOPE will continue to provide customers with complete 3D industrial inspection solutions.
6 Holes Disk Fluorescence Unit
Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View
XY Motorized Control
Control the motorized stage through software, support one-click set/return to origin point, Long press the mouse and drag in the camera preview window to control the electric platform to move in the corresponding direction
Motorized Fluorescent, BF, XYZ Motorized
● Infinity Plan Semi-APO FL4x10x20x40x100x, Fluorescent B,G,U,V
● X/Y/Z Motorized Stage Large Moving Range 100x100mm Resolution 0.05um
● Full Auto 2D Scan Image Stitching With Quick & Precise Mode
● Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching & Measuring
● USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed Software
| Items |
M12145 3D Full Auto SDF Biological Microscope M15112 3D Full Auto SDF Fluorescent Microscope |
M12145 | M15112 | |
|
Optical System
|
Infinity Optical System, BF Bright Field | ● | ● | |
| Semi-APO, Semi Apochromatic | ● | ● | ||
| DF, Dark Field | ○ | ○ | ||
| PL, Polarizing | ○ | ○ | ||
| PH, Phase Contrast | ○ | ○ | ||
| FL, Fluorescent | ○ | ○ | ||
| Nosepiece | Quintuple, Backward, With Inner Click Stop | ● | ● | |
| Head |
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupillary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm |
○ | ○ | |
| Adapter | 0.5x C-Mount, For 1/2"CCD, Focus Adjustable | ● | ||
| 0.75x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | ||
| 1.0x C-Mount, For 1"CCD, Focus Adjustable | ○ | ○ | ||
| Digital Camera |
9.0M USB3.0 GS Shutter Digital Camera, 1“ CMOS, C-Mount, FPS 34@4096x2160, 60@2048x1080, G Sensitivity Dark Signal 1146m with 1/30s |
● | ● | |
| Eyepiece | WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable | ● | ● | |
| WF15x/16mm,Dia.30mm, High Eyepoint, Diopter Adjustable | ○ | ○ | ||
| WF20x/12mm,Dia.30mm, High Eyepoint, Diopter Adjustable | ○ | ○ | ||
|
WF10x/22mm, With Micrometer X-0.1mm*180 Div/ Y-Single Line, Diopter Adjustable |
○ | ○ | ||
| Infinity Plan Semi-APO Fluorescent Objective | UPlanFLN 4x, N.A.0.16,W.D.=17.151mm | ● | ● | |
| UPlanFLN 10x, N.A.0.30,W.D.=7.68mm | ● | ● | ||
| UPlanFLN 20x, N.A.0.50,W.D.=1.96mm | ● | ● | ||
| UPlanFLN 40x, N.A.0.75,W.D.=0.78mm | ● | ● | ||
| UPlanFLN 100x, N.A.1.30,W.D.=0.15mm | ● | ● | ||
| Filter | Dia.45mm, Blue | ● | ● | |
| Dia.45mm, Green | ○ | ○ | ||
| Dia.45mm, Yellow | ○ | ○ | ||
| Focusing |
Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm |
● | ● | |
| Condenser | Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm | ● | ● | |
| Illumination |
5W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V- 240V, Output 5V1A, Support Power Bank Supply For Outdoor Use |
● | ● | |
|
ECO
|
ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually |
○ | ○ | |
| Dark Field | Dark Field Condenser, Dry N.A.0.83-0.91, For 4x10x40x Objective | ○ | ○ | |
| Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective | ○ | ○ | ||
| Polarizing | Analyzer + Polarizer Set | ○ | ○ | |
| Phase Contrast |
Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter |
○ | ○ | |
| Fluorescence |
A5F.2602-4: B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier |
○ | ● | |
Note: ● means standard, ○ means optional
Full Auto Microscope Scanning Software
2D 2DB
X/Y Motorized X/Y/Z Motorized
2D Plane Scan 2D Bevel Scan
2DF 3D
X/Y/Z Motorized X/Y/Z Motorized
2D Fusion Scan 3D Scan
