Product Details:
|
| Optical System: | NIS60 Infinity Optical System | Observation Method: | Bright Field |
|---|---|---|---|
| Camera: | Cooling Digital Camera | Eyepiece: | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm |
| Nosepiece: | Manual Nosepiece, Sextuple, Backward | Condenser: | Swing-Out Condenser NA0.9/0.25 |
| Adapter: | C-Mount 0.5x | Filter For Transmit Light: | Filter Holder On Base, Can Hold 3 Filters |

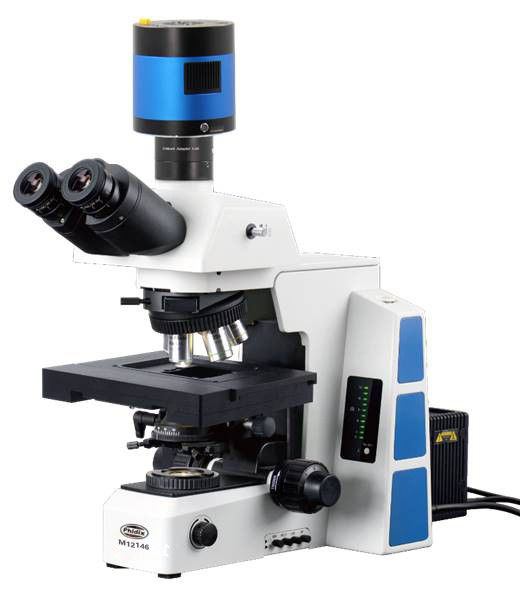

Research Level 3D Semi-Auto Laboratory biological microscope
The brand-new M12146 research-grade biological /M15113 fluorescence microscope has been upgraded to an all-electric XYZ workbench model. With powerful software, it integrates many initiatives, keeps up with the international leading design trend in terms of appearance and performance, and is committed to expanding a new pattern in the industrial field. Adhering to the brand design concept of continuous exploration and transcendence, we will continue to provide customers with perfect 3D industrial inspection solutions.
| Items |
M12146 Motorized Research Level Biological Microscope M15113 Motorized Research Level Fluorescent Microscope |
M12146 | M15113 | |
| Optical System | NIS60 Infinity Optical System | ● | ● | |
|
Observation Method
|
BF, Bright Field | ● | ● | |
| DF, Dark Field | ○ | ○ | ||
| PL, Polarizing | ○ | ○ | ||
| PH, Phase Contrast | ○ | ○ | ||
| FL, Fluorescent | ○ | ● | ||
| DIC | ○ | ○ | ||
| Main Body | Manual Body + Halogen Illumination | ● | ● | |
| Manual Body + LED Illumination | ● | ● | ||
| Head | Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm | ○ | ○ | |
| Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | ● | ● | ||
| Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | ○ | ○ | ||
| Digital Camera |
7.0M USB3.0 CMOS Cooling GS Shutter Digital Camera, For Fluorescent Imaging,, 1.1” CMOS, FPS 12@3200x2200, 33@1600x1100, Semi-Conductor Cooling Range -42°C, Anti-Frog, One Hour Exposure, G Sensitivity Dark Signal 2058mv with 1/30s |
● | ● | |
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ● | ● | |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ||
| EW12.5x/16mm, High Eyepoint | ○ | ○ | ||
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ||
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ||
| Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | ○ | ○ | |
| Manual Nosepiece, Sextuple, Backward | ● | ● | ||
| Motorized Coded Nosepiece, Sextuple, Backward | ○ | ○ | ||
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ||
| Protect Cover For Nosepiece Holes | ● | ● | ||
|
N-PLFN Infinity Plan Semi-APO Fluorescent Objective |
PlanF S-APO 4x/0.13, W.D.16.5mm, Cover Glass 0.17mm | ● | ● | |
| PlanF S-APO 10x/0.30, W.D.8.1mm, Cover Glass 0.17mm | ● | ● | ||
| PlanF S-APO 20x/0.50, W.D.2.1mm, Cover Glass 0.17mm | ● | ● | ||
| PlanF S-APO 40x/0.75, W.D.0.7mm, Cover Glass 0.17mm | ● | ● | ||
| PlanF S-APO 100x/1.30(Oil), W.D.0.15mm, Cover Glass 0.17mm | ● | ● | ||
|
NIS60 N-PLN Infinity Plan Objective |
2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | ○ | ○ | |
| 4x/0.10, W.D.30mm, Cover Glass 0.17mm | ○ | ○ | ||
| 10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | ○ | ○ | ||
| 20x/0.40, W.D.12mm, Cover Glass 0.17mm | ○ | ○ | ||
| 40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | ○ | ○ | ||
| 50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm | ○ | ○ | ||
| 60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | ○ | ○ | ||
| 100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | ○ | ○ | ||
|
NIS60 APO Infinity Plan |
20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | ○ | ○ | |
| 100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | ○ | ○ | ||
|
Filter For Transmit Light |
Filter Holder On Base, Can Hold 3 Filters | ● | ● | |
| Filter LBD | ○ | ○ | ||
| Filter Green | ○ | ○ | ||
| Filter Yellow | ● | ● | ||
| Filter ND6 | ○ | ○ | ||
| Filter ND25 | ○ | ○ | ||
| Focusing |
Motorized & Manual Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm |
● | ● | |
| Condenser | Swing-Out Condenser NA0.9/0.25 | ● | ● | |
| Light Source | Transmit Kohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House . For A12.1091-H, A12.1093-H | ● | ● | |
| Transmit Kohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body. For A12.1091-L, A12.1093-L | ○ | ○ | ||
| ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | ● | ● | ||
| Adapter | Eyepiece Adapter Dia.23.2mm | ○ | ○ | |
| C-Mount 1.0x | ○ | ○ | ||
| C-Mount 0.5x | ● | ● | ||
| Software | NOMIS Basic Image Processiing Software | ○ | ○ | |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | ○ | ○ | |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | ○ | ○ | ||
|
Dark Field Objective, Infinity Plan 100X, For Immersion Dark Field Observation |
○ | ○ | ||
|
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, For Immersion Dark Field Observation |
○ | ○ | ||
| Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | ○ | ○ | |
|
Analyzer For Transmit Light, Slide With Quartz Wedge Compensator |
○ | ○ | ||
| Upgrade To A15.1091 Professional Polarizing Microscope | ○ | ○ | ||
| Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | ○ | ○ | |
| Centering Telescope 10x | ○ | ○ | ||
| Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | ○ | ○ | ||
| Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | ○ | ○ | ||
| Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | ○ | ○ | ||
| Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | ○ | ○ | ||
| Fluorescent |
Reflect Mercury Epi-Fluorescent Illuminator, Turret Disc With 6 Positions For Fluorescent Filter Block, With Protect Barrier |
○ | ● | |
| Power Supply Box 220V/110V Interchangeable, Digital Display | ○ | ● | ||
| 100W Mercury Lamp Housing | ○ | ● | ||
| Fluorescent Filter B,G,U,V | ○ | ● | ||
| DIC | Polarizer For Transmit Light Source | ○ | ○ | |
| Turret DIC Condenser | ○ | ○ | ||
| DIC Slide 10x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ||
| DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ||
| DIC Slide 100x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ||
| DIC Slide With Analyzer 10x-20x | ○ | ○ | ||
| DIC Slide With Analyzer 40x-100x | ○ | ○ | ||
|
Other Accessories |
Working Stage Holder Bracket | ● | ○ | |
| Adapter To Adjust Eye Position | ○ | ○ | ||
| Adapter To Lower The Stage Position 1" | ○ | ○ | ||
| Immersion Oil | ● | ○ | ||
| Allen Wrench | ● | ○ | ||
| Power Cord | ● | ○ | ||
| Short Eye Cover, For Eyepiece | ○ | ○ | ||
| Long Eye Cover, For Eyepiece | ○ | ○ | ||
| Eyepiece Micrometer, Cross | ○ | ○ | ||
| Adapter Ring To Install Eyepiece Micrometer | ○ | ○ | ||
| USB Cable | ○ | ○ | ||
Note: ● means standard, ○ means optional
Full Auto Microscope Scanning Software
2D 2DB
X/Y Motorized X/Y/Z Motorized
2D Plane Scan 2D Bevel Scan
2DF 3D
X/Y/Z Motorized X/Y/Z Motorized
2D Fusion Scan 3D Scan
