Product Details:
|
| Optical System: | Greenough Optical System, BF Bright Field | Main Body: | 0.8x-5x Trinocular Head 45°Inclined, IPD 52-75mm |
|---|---|---|---|
| Zoom Ratio: | 1:6.3 | Eyepiece: | WF10x/22mm, Diopter Adjustable, Pair |
| Focusing: | Coarse Focusing Adjustment, Focusing Range 100mm | Working Distance: | 100mm |
| Repeatability: | ≤10um | Maximum Velocity: | 50mm/s |
| Resolution: | <0.05um | XYZ Moving: | 100x100mm |

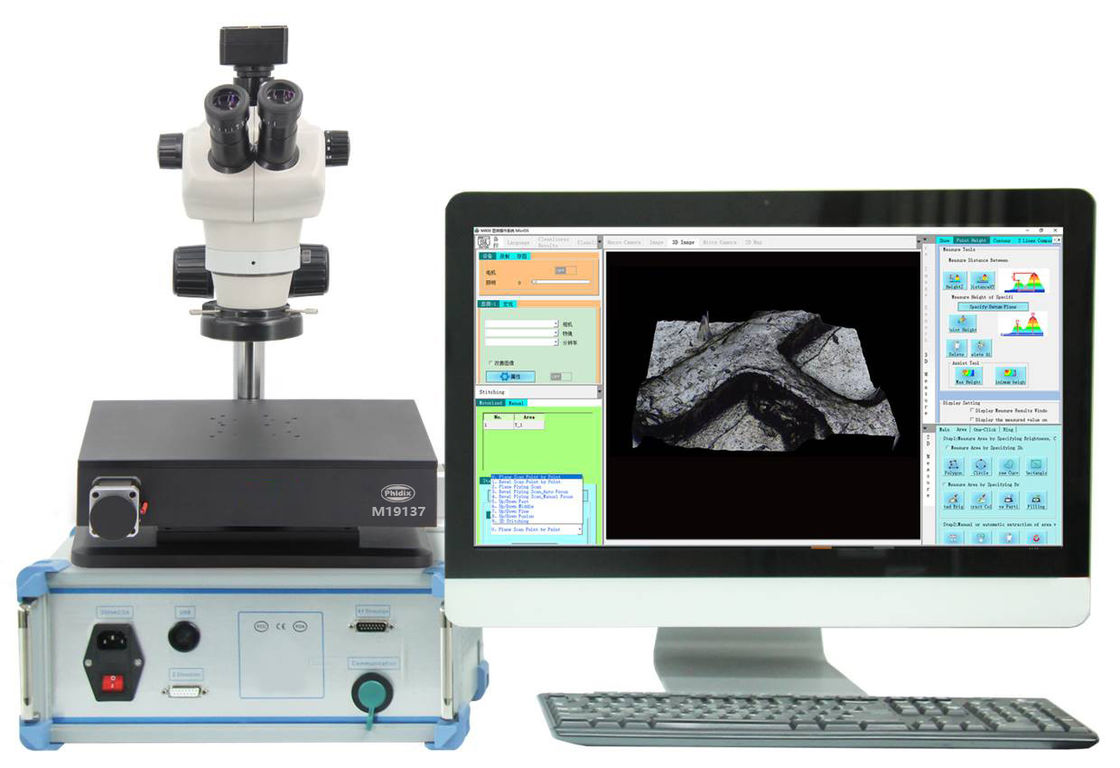

Binocular Head Zoom Body 3D Full Auto Stereo XY Motorized Measuring Microscope

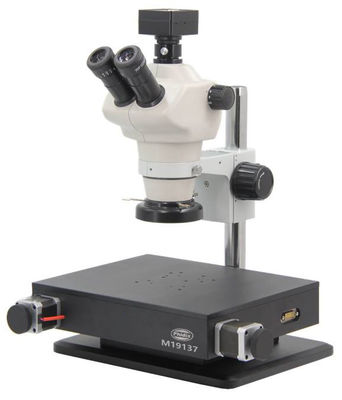

The new M9137 Research-grade Stereo Microscope has upgraded to XY motorized working
stage model, combined with the powerful 2D/3D software, which integrates a number of firsts. From appearance to performance, it closely follows the international leading design trend. We will continue to provide customers with complete 3D industrial inspection solutions.
● 0.8x-5.0x 1:6.3 Optical Zoom Lens With Transmit & Reflect LED Ring Light
● X/Y Motorized Stage Large Moving Range 100x100mm Resolution 0.05um
● Full Auto 2D Scan Image Sticthing With Quick & Precise Mode
● 2D Free Area Selection For Full Range Measuring Function
● Electrical Map To Over View Full Object Image, Click To Reach Any Interesting Point
| Items | XY Motorized Measuring Microscope | M19141 | M19137 |
| Optical System | Coaxial Light Optical System, BF Bright Field | ● | - |
| Greenough Optical System, BF Bright Field | - | ● | |
| Main Body | 0.6x~5x Mono Zoom Optical Tube, | ● | - |
| 0.8x-5x Trinocular Head 45°Inclined, IPD 52-75mm | - | ● | |
| Zoom Ratio | 1:8.3 | ● | - |
| 1:6.3 | - | ● | |
| Eyepiece | WF10x/22mm, Diopter Adjustable, Pair | - | ● |
| Stand | Pole Stand, With Bracket Holder Dia.50mm, With Black Large Square Base 330x330x20mm, Column Dia.32mm, Height 318mm | ● | - |
| Pole Stand, With Bracket Holder Dia.76mm, With Black Large Square Base 330x330x20mm, Column Dia.32mm, Height 318mm | - | ● | |
| Focusing | Coarse Focusing Adjustment, Focusing Range 100mm | ● | ● |
| Working Distance | 125mm | ● | - |
| 100mm | - | ● | |
| Light Source | Coaxial Upper 5W LED Ring Light, Brightness Adjustable | ● | ● |
| Digital Camera | 9.0M USB3.0 GS Shutter Digital Camera, 1“ CMOS, C-Mount, FPS 34@4096x2160, 60@2048x1080, G Sensitivity Dark Signal 1146m with 1/30s | ● | ● |
| Motorized Working Stage, Computer & Software | ||
|
Motorized Working Stage |
XY Motorized Working Stage, 2-Phase Stepping Motor, High Precision Module, Aluminum Alloy Material, Surface Anodized, Anti-Corrosion And Scratch-Resistant |
● |
| XYZ Moving | 100x100mm | |
| Resolution | <0.05um | |
| Maximum velocity | 50mm/s | |
| Repeatability | ≤10um | |
| Maximum loading | 68kg | |
| Working Stage weight | 6.8kg | |
| Computer | i5 16G 256G+1T, 1G Graphic Card, 24“ Monitor | ● |
| Software | 2D, Plane Scan, For XY or XYZ Stage+2C Computer | ● |
| 2DB, Add Bevel Scan, For XYZ Stage+2C Computer | ○ | |
| 3D, Add 3D Scan, For XYZ Stage+3C Computer | ○ | |
| Customized Function, Detail See Maxcope Software Version Table | ○ | |
Full Auto Microscope Scanning Software
2D 2DB
X/Y Motorized X/Y/Z Motorized
2D Plane Scan 2D Bevel Scan
3D
X/Y/Z Motorized
3D Scan
