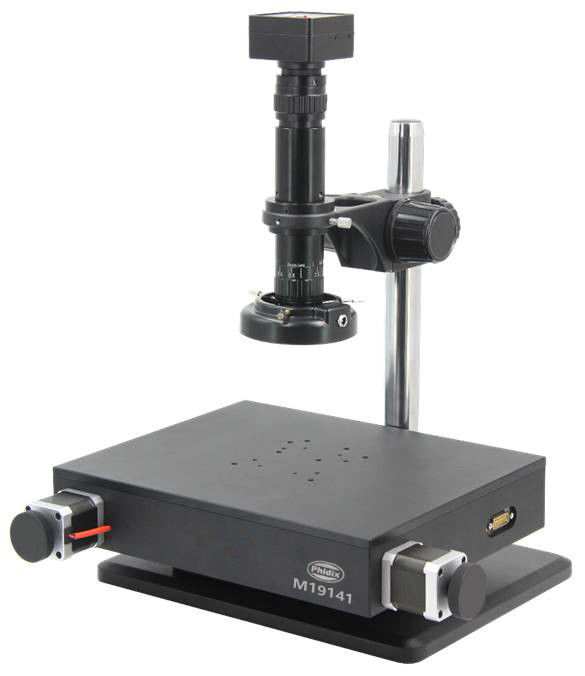

XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope

XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope
XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope

Large Image :  XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M19141
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope

Description
Optical System: Coaxial Light Optical System, BF Bright Field Main Body: 0.6x~5x Mono Zoom Optical Tube,
Zoom Ratio: 1:8.3 Focusing: Coarse Focusing Adjustment, Focusing Range 100mm
Working Distance: 125mm Repeatability: ≤10um
Computer: I5 16G 256G+1T, 1G Graphic Card, 24“ Monitor Resolution: <0.05um
Software: 2D, Plane Scan, For XY Or XYZ Stage+2C Computer Light Source: Coaxial Upper 5W LED Ring Light, Brightness Adjustable



XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope



The new M9141 Research-grade Stereo Microscope has upgraded to XY motorized working

stage model, combined with the powerful 2D/3D software, which integrates a number of firsts. From appearance to performance, it closely follows the international leading design trend. We will continue to provide customers with complete 3D industrial inspection solutions.

• 0.6x-5.0x 1:8.3 Optical Zoom Lens With LED Ring Light

• X/Y Motorized Stage Large Moving Range 100x100mm Resolution 0.05um

• Full Auto 2D Scan Image Stitching With Quick & Precise Mode

• 2D Free Area Selection For Full Range Measuring Function

• Electrical Map To Over View Full Object Image, Click To Reach Any Interesting Point



XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope 0

XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope 1



Items XY Motorized Measuring Microscope M19141 M19137
Optical System Coaxial Light Optical System, BF Bright Field -
Greenough Optical System, BF Bright Field -
Main Body 0.6x~5x Mono Zoom Optical Tube, -
0.8x-5x Trinocular Head 45°Inclined, IPD 52-75mm -
Zoom Ratio 1:8.3 -
1:6.3 -
Eyepiece WF10x/22mm, Diopter Adjustable, Pair -
Stand Pole Stand, With Bracket Holder Dia.50mm, With Black Large Square Base 330x330x20mm, Column Dia.32mm, Height 318mm -
Pole Stand, With Bracket Holder Dia.76mm, With Black Large Square Base 330x330x20mm, Column Dia.32mm, Height 318mm -
Focusing Coarse Focusing Adjustment, Focusing Range 100mm
Working Distance 125mm -
100mm -
Light Source Coaxial Upper 5W LED Ring Light, Brightness Adjustable
Digital Camera 9.0M USB3.0 GS Shutter Digital Camera, 1“ CMOS, C-Mount, FPS 34@4096x2160, 60@2048x1080, G Sensitivity Dark Signal 1146m with 1/30s



XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope 2                   XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope 3

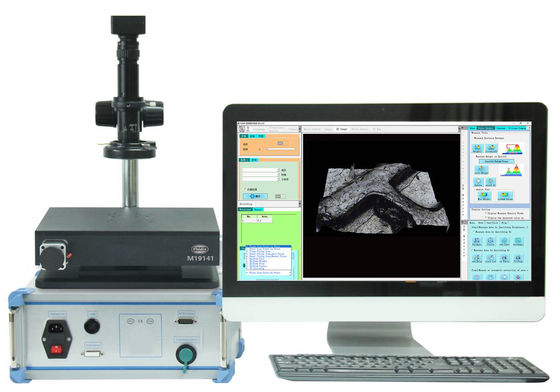

Motorized Working Stage, Computer & Software

Motorized

Working Stage

XY Motorized Working Stage, 2-Phase Stepping Motor, High Precision Module,

Aluminum Alloy Material, Surface Anodized, Anti-Corrosion And Scratch-Resistant

XYZ Moving 100x100mm
Resolution <0.05um
Maximum velocity 50mm/s
Repeatability ≤10um
Maximum loading 68kg
Working Stage weight 6.8kg
Computer i5 16G 256G+1T, 1G Graphic Card, 24“ Monitor
Software 2D, Plane Scan, For XY or XYZ Stage+2C Computer
2DB, Add Bevel Scan, For XYZ Stage+2C Computer
3D, Add 3D Scan, For XYZ Stage+3C Computer
Customized Function, Detail See Maxcope Software Version Table





Full Auto Microscope Scanning Software
XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope 4           XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope 5
                                   2D                                                                                     2DB
                         X/Y Motorized                                                                    X/Y/Z Motorized
                        2D Plane Scan                                                                     2D Bevel Scan

 XY Motorized Measuring Microscope, Mono Zoom Body 3D Full Auto Stereo Microscope 6
                                     3D
                          X/Y/Z Motorized
                                3D Scan
