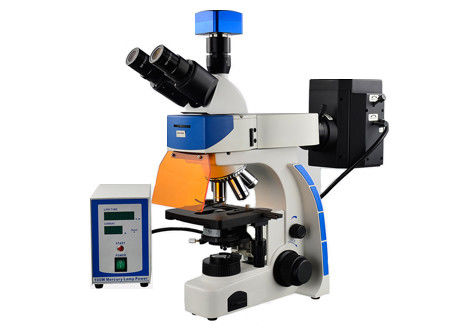

Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope

Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope
Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope

Large Image :  Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M15109
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Fluorescence Microscope Eyepiece: WF10X /20mm
Lead-time: 15-20 Work Days Magnification Ratio: 40X-1000X
Objective: 4X/10X/40X/100X Nosepiece: 4-Position
Light Source: Fluorescence Light 12V 100W Mercury Lamp Transmitted Light 6V 20W Supply Ability: 1000 PCS/Month
High Light:

Trinocular biology lab microscope

,

40X biology lab microscope

,

100X epi fluorescence microscope



Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope



what is a trinocular microscope used for?


M15109 Trinocular Biology Lab Microscope 40X 100X Epi Fluorescence Microscope. M15109 series fluorescence microscopes are the new Biological with EPI-Fluorescence. The M15109 employs Infinity Corrected Optical System making the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio. These microscopes are configured for Bright-field and EPI-fluorescence but can also be outfitted with optional Phase contrast, Polarized light and Dark-field components. System modularity makes purchase and operation very affordable for colleges, universities, researchers and clinics.


Features:

  • It comes with four high quality plan achromatic objectives.
  • It is an ideal instrument for advanced research in biology, cytology, oncology, hematology, genetics, immunology, microchemistry and environmental protection.
  • It is also a perfect tool for sedimentary rock analysis and for the inspection of impurities in semiconductor industries.
  • With excellent infinity optical system and stable stage, it is the ideal microscope for life-science and medical research.
  • It can be used as transmitted light microscope.
  • It is widely applied in the biological pharmacy, medicine checking and measure.



ItemSpecificationM15109AM15109BM15109CM15109D
Observation Tube:Binocular head inclined at 30°
Trinocular head inclined at 30°
Interpupillary distance:From 50-75mm
Eyepiece:WF10X/20mm eyepieces●●●●●●●●
Objectives:Infinity Plan Achromatic objectives 4X,10X, 40X(spring), 100X(spring, oil)
Stage:Mechanical stage with size 156x138mm, X-Y travel is 76x54mm
Focusing:Coaxial focusing knob, fine focusing is graduated in increment of 1um
Condenser:N.A. 1.25Abbe condenser with iris diaphragm
Illumination:

Fluorescence light 12V 100W

mercury lamp

Transmitted light 6V 20W



Fluorescence light 5W LED

Transmitted light 3W LED


Fluorescence Filter:CHROMA B/G(USA brand)
CHROMA B/G(USA brand)
Power supply:100-240V
Standard accessories:Dust cover, fuse, power cord
Optional accessoriesWF10X/22mm eyepiece
20X plan objective
60X plan objective
Phase contrast parts
Dark field parts
C-mount adapter
digital camera adapter
digital camera eyepiece
3M/5M/10M/16M/HD camera

Note: ● means standard, ○ means optional
